How your air conditioner works explained simply comes down to one core idea: your AC doesn't create cold air — it moves heat from inside your home to the outside. Here's a quick overview of the process:

1. Warm indoor air is drawn over cold evaporator coils inside your home.
2. Refrigerant inside those coils absorbs the heat and turns from a liquid into a gas.
3. The compressor (in the outdoor unit) pressurises the gas, raising its temperature further.
4. The condenser coils release that heat into the outdoor air.
5. The refrigerant cools back into a liquid and the cycle starts again — continuously.

That's the entire refrigeration cycle, running on repeat every 15 to 20 minutes to keep your home comfortable.

Most homeowners in Georgetown, Halton Hills, Acton, and Milton don't think much about their air conditioner — until it stops working on the hottest day of the year. Understanding how your system actually works can help you spot problems early, maintain it better, and make smarter decisions when it's time for a repair or upgrade. The core technology dates back to July 17, 1902, when Willis Carrier installed the first modern air conditioning system — and while today's units are far more efficient, the fundamental physics behind them hasn't changed.

In the sections below, we'll walk through every part of the process in plain language — no engineering degree required.

At its heart, air conditioning is a clever application of thermodynamics. We often think of "cold" as something we can add to a room, like adding ice to a drink. However, in physics, cold is simply the absence of heat. To make a room feel cooler, we must physically remove the thermal energy (heat) from the air and relocate it somewhere else.

This process relies on a closed-loop refrigeration cycle. By circulating a special fluid called refrigerant between the inside and outside of your home, the system acts as a transport vehicle for heat. Whether you have a traditional central system or you are understanding different types of AC systems like ductless units, the goal remains the same: indoor comfort through heat relocation.

The Science of How Your Air Conditioner Works Explained Simply

The magic happens through a process called "phase conversion." You’ve seen this in your kitchen: when you boil water, it turns into steam (gas). This change of state requires energy. In an air conditioner, we use a refrigerant that has a very low boiling point.

When the liquid refrigerant in your indoor coils evaporates into a gas, it aggressively absorbs heat from the surrounding air. Later, when that gas is squeezed back into a liquid (condensation), it releases that heat. By controlling where these phase changes happen—evaporation inside and condensation outside—we can effectively "pump" heat out of your living room and into the backyard.

Why Your AC Doesn't Actually "Create" Cold Air

It is a common misconception that an air conditioner acts like a giant fan blowing "new" cold air into your house. In reality, your AC is a recycler. It pulls the existing air from your rooms through return ducts, strips the heat and moisture away from it, and then pushes that same air—now much cooler—back into your home.

This is why your home needs to be relatively well-sealed. If the AC is busy removing heat while open windows are letting new heat back in, the system will struggle to keep up. The energy transfer is a constant battle to keep indoor temperatures lower than the outdoor environment.

The Four Essential Components of Your AC System

To move heat effectively, your system relies on four primary mechanical "players." If any one of these components fails, the entire cycle grinds to a halt.

The Indoor Evaporator Coil and Blower Fan

Located inside your home (usually in the furnace or air handler), the evaporator coil is the "cold" side of the system. It consists of copper tubing arranged in a series of loops, covered by thin aluminum fins. The blower fan pulls warm air from your home over these cold fins.

As the air passes over the coils, the heat is transferred into the refrigerant. If the airflow is restricted by a dirty filter or if the coils are covered in dust, the heat transfer won't happen efficiently. This is a common reason why your AC is blowing hot air despite the system being turned on.

The Outdoor Compressor and Condenser

Once the refrigerant has absorbed indoor heat and turned into a gas, it travels through copper lines to the outdoor unit. This is where you'll find the AC condenser unit explained in its full glory.

The compressor is often called the "heart" of the system. It squeezes the refrigerant gas, which raises its pressure and temperature significantly. This high-pressure, high-heat gas then enters the condenser coils. A large fan pulls outdoor air across these coils, allowing the heat to escape into the environment. To ensure the system operates safely during this high-pressure phase, our technicians often refer to an AC pressure switch complete guide to ensure the unit doesn't over-pressurise and cause damage.

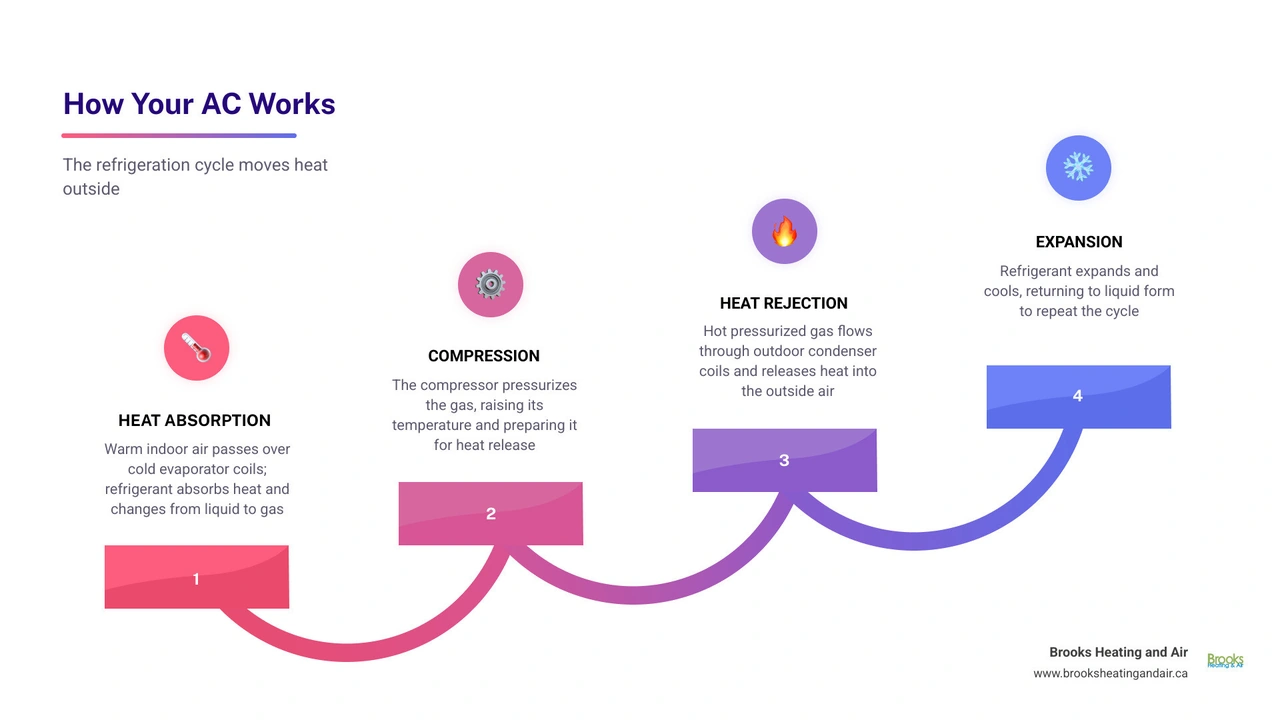

The Refrigeration Cycle: A Step-by-Step Journey

To truly understand how your air conditioner works explained simply, we need to follow a single molecule of refrigerant as it travels through your home in May 2026.

A Step-by-Step Guide: How Your Air Conditioner Works Explained Simply

1. Step 1: Heat Absorption (The Evaporator): Cold liquid refrigerant enters the indoor evaporator coil. As warm indoor air blows over the coil, the refrigerant absorbs the heat and evaporates into a low-pressure gas.
2. Step 2: Compression (The Compressor): The gas travels to the outdoor unit. The compressor squeezes the gas, making it very hot and very dense.
3. Step 3: Heat Rejection (The Condenser): The hot gas flows through the condenser coils. The outdoor fan blows air over the coils, and the heat "jumps" from the coils to the outside air. As it loses heat, the refrigerant turns back into a liquid.
4. Step 4: Expansion (The Expansion Valve): Before the liquid refrigerant goes back inside, it passes through an expansion valve. This device acts like a nozzle, dropping the pressure of the refrigerant rapidly. This causes the temperature to plummet, preparing it to absorb more heat indoors.

The Vital Role of Refrigerant in Your Home

Refrigerant is the "blood" of your HVAC system. It is a special chemical compound designed to change states at precise temperatures. In the past, systems used R-22 (Freon), but due to environmental concerns regarding the ozone layer, modern systems in Georgetown and Milton use R-410A or newer, more eco-friendly alternatives.

Since the system is a closed loop, you should never "run out" of refrigerant. If your system is low, it means there is a hole somewhere. Detecting and addressing AC refrigerant leaks is critical because low levels cause the compressor to work harder, leading to higher bills and eventual system failure.

Beyond Cooling: Humidity Control and System Types

Air conditioning does more than just lower the temperature; it also makes the air "feel" better by removing excess moisture.

How Your AC Removes Humidity

Have you ever noticed a cold can of soda "sweat" on a humid day? That is exactly how your AC dehumidifies your home. When warm, moist indoor air hits the freezing cold evaporator coil, the moisture in the air condenses into water droplets.

This water collects in a drain pan and flows out of your home through a condensate drain line. This process lowers the relative humidity, which is essential for comfort in Ontario's sticky summers. Drier air allows your sweat to evaporate more easily, making you feel cooler even if the thermostat hasn't moved.

Comparing Air Conditioners and Heat Pumps

While we are discussing cooling, many homeowners in Acton and Halton Hills are opting for heat pumps. A heat pump is essentially an air conditioner with a "reversing valve."

If you live in an older home without ductwork, you might be choosing between central air vs ductless for older homes. In these cases, ductless mini-split systems explained simply as "zonal cooling" can be a lifesaver, providing the same refrigeration cycle without the need for bulky ducts.

Keeping Your System Efficient in Halton Hills and Milton

Now that you know how the system works, you can see why maintenance is so important. A blockage anywhere in that cycle—whether it's dust on a coil or a clogged filter—forces the system to run longer to achieve the same cooling effect.

DIY Maintenance for Ontario Homeowners

We always tell our neighbours in Georgetown that the best thing they can do for their AC is to keep it clean.

• Filter Replacement: Change your filters every 1–3 months. A clogged filter is the #1 cause of AC breakdowns.
• Clear the Area: Ensure your outdoor condenser has at least 2 feet of clearance. Trim back shrubs and remove dried leaves.
• Coil Care: Dirty coils act like a blanket, trapping heat. The importance of AC coil cleaning cannot be overstated for maintaining efficiency.

For a full breakdown of what to do and when, check out our essential AC maintenance schedules.

When to Call for Professional Support

While homeowners can handle filters and basic cleaning, the refrigeration cycle involves high-pressure gases and complex electrical components. Professional tune-ups ensure your refrigerant levels are precise and your electrical connections are tight.

If your system is over 15 years old and struggling, it may be time to consider a professional AC installation for home comfort. Modern units are significantly more efficient than those built just a decade ago, often paying for themselves in energy savings over time.

Frequently Asked Questions about How Your Air Conditioner Works Explained Simply

Does my air conditioner pull in fresh air from outside?

No. This is one of the most common myths. Your AC recirculates the air already inside your home. The only thing that travels between the indoor and outdoor units is the refrigerant through copper pipes. If you want fresh air, you would need a separate system like an Heat Recovery Ventilator (HRV).

Why is my air conditioner leaking water?

Water around your indoor unit usually means your condensate drain line is clogged. Because the AC strips so much humidity from the air, it produces gallons of water. If the drain is blocked by algae or dust, that water has nowhere to go but onto your floor.

How long should a typical cooling cycle last?

In moderate weather, a cycle should last about 15 to 20 minutes. If your system turns on and off every few minutes (short-cycling), it could be oversized or have a faulty sensor. If it runs 24/7 without stopping, it might be undersized or low on refrigerant.

Conclusion

Understanding how your air conditioner works explained simply helps you take better care of one of your home's most expensive appliances. By remembering that your AC is a "heat mover" rather than a "cold maker," you can appreciate the importance of airflow, clean coils, and proper refrigerant levels.
