How to Diagnose or Replace AC Pressure Switch

Why Your AC Pressure Switch Matters for Home Comfort

An AC pressure switch is a small but critical safety device in your air conditioning system. It monitors refrigerant pressure on both the high and low sides of the system, and it protects your compressor from serious damage caused by pressure that's either too low or too high.

Here's a quick overview of what you need to know:

• What it does: Monitors refrigerant pressure and signals the compressor to cycle on or off
• Where it sits: On the high-pressure or low-pressure refrigerant lines, usually near the compressor
• Why it fails: Electrical corrosion, physical damage, worn contacts, or refrigerant leaks
• Key symptoms: Warm air from vents, compressor clicking on and off, or the check engine light coming on
• Low-side normal range: Around 30 PSI at or below 90°F ambient temperature
• High-side normal range: Roughly 2x ambient temperature plus 50 PSI

When this switch stops working properly, your AC system can't regulate pressure correctly. That means your compressor — the most expensive part of your AC — is left without protection. Left unaddressed, a faulty pressure switch can lead to compressor seizure or full system failure.

Whether your AC is blowing warm air, cycling on and off unpredictably, or not turning on at all, understanding the AC pressure switch is the first step toward diagnosing the problem.

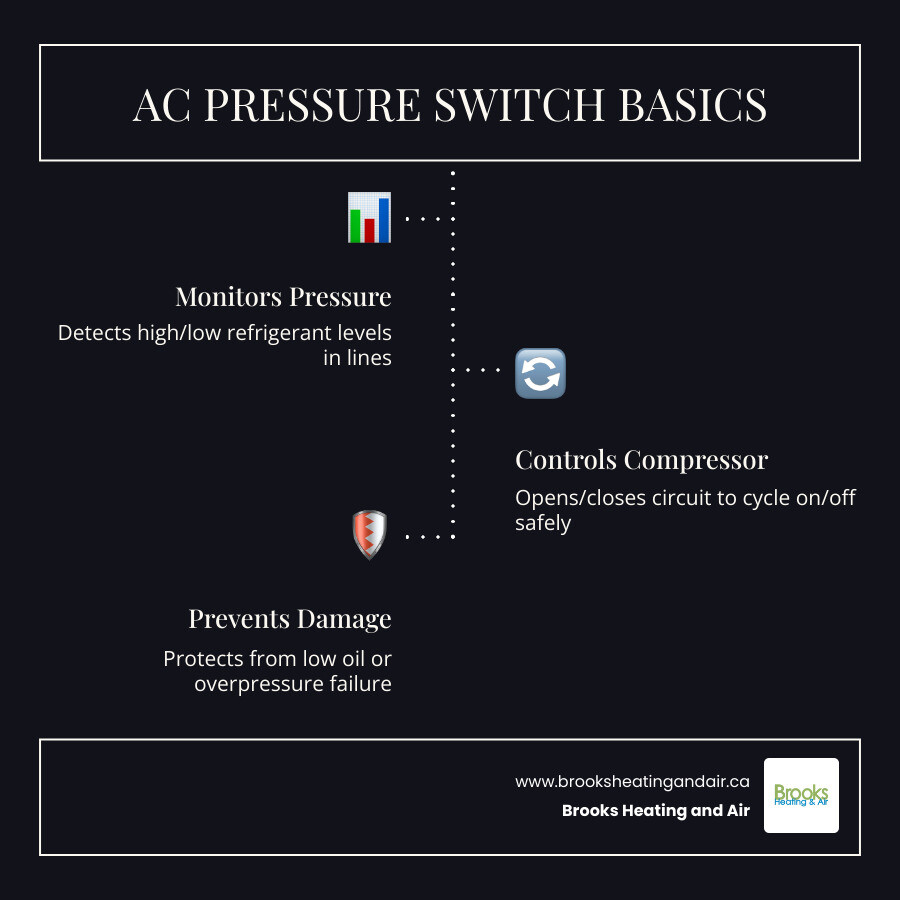

What is an AC Pressure Switch and How Does it Work?

At its core, an ac pressure switch acts as the "brain" that prevents your air conditioning system from destroying itself. Think of it as a gatekeeper for the compressor. The compressor is the heart of the system, but it is also the most expensive component to replace. It relies on a steady flow of refrigerant, which also carries the oil needed for lubrication.

The AC Pressure Switch works by monitoring the internal pressure of the refrigerant lines. It is an electromechanical device that opens or closes an electrical circuit based on the pressure it senses.

When you turn on your AC, the switch checks if there is enough pressure to operate safely. If the pressure is too low (suggesting a leak) or too high (suggesting a blockage), the switch breaks the circuit to the compressor clutch. This prevents the compressor from engaging. Without this safety monitor, a compressor running with low refrigerant would quickly seize due to lack of oil, while a system with excessive pressure could literally burst a hose or damage the condenser.

Identifying the Different Types of AC Pressure Switches

Not all switches are created equal. Depending on your vehicle's design, you might have one, two, or even three different types of switches working together.

Low-Pressure Cut-Out (LPCO)

The LPCO is your primary defense against leaks. If your refrigerant level drops too low, the pressure falls below a specific threshold. The LPCO senses this and creates an open circuit, shutting off the compressor. This is vital because low refrigerant means low oil flow; without it, the compressor would burn out in minutes.

High-Pressure Cut-Out (HPCO)

On the flip side, the HPCO protects the system from "explosive" force. If the condenser is blocked or the cooling fan fails, pressure on the high side can skyrocket. The HPCO interrupts the power supply to the compressor to prevent component failure or ruptured lines.

Compressor Cycling Switch

Commonly found on the low-pressure side, this switch manages the temperature. It cycles the compressor on and off to keep the evaporator from freezing over while ensuring the cabin stays cool.

Other Specialized Switches

• Fan Switch: This monitors medium-range pressure and tells the condenser fan to kick into high gear when extra cooling is needed.
• Thermo Limiting Switch: Often found in older systems, this uses a melting fuse that "blows" if the compressor gets too hot, permanently breaking the circuit to prevent a fire.

Common Symptoms of a Faulty AC Pressure Switch

In April 2026, as the weather begins to warm up in Georgetown and Milton, you'll likely notice very quickly if your ac pressure switch is acting up. Here are the most common red flags:

1. Inconsistent Cooling: The AC might work perfectly for ten minutes and then suddenly blow warm air. This often happens when the switch has worn internal contacts that lose connection as they get warm.
2. Rapid Clicking Noises: If you hear a constant "click-clack" coming from the engine bay, it’s likely the compressor clutch engaging and disengaging rapidly. This happens when a faulty switch sends "stuttering" signals to the compressor.
3. The AC Won't Turn On: Sometimes the switch fails in the "open" position. Even if your refrigerant levels are perfect, the switch tells the system the pressure is zero, and the compressor never starts.
4. MIL/CEL Illumination: In modern vehicles, the Engine Control Module (ECM) monitors these switches. If the readings don't make sense, it will trigger the Check Engine Light.
5. Compressor Fluctuation at Idle: You might notice your engine RPM jumping up and down as the compressor struggles to stay engaged while you're stopped at a light.

How to Diagnose a Bad AC Pressure Switch

Before you start replacing parts, you need to confirm the switch is actually the culprit. Sometimes the symptoms of a bad switch are identical to those of a simple refrigerant leak.

Using an OBD2 Scanner

Modern vehicles are quite smart. By plugging an OBD2 scanner into the port under your dashboard, you can look for Diagnostic Trouble Codes (DTCs). You can also look at "Live Data PIDs" to see exactly what pressure the switch is reporting to the car's computer. If the scanner says 0 PSI but your manual gauges show 30 PSI, you know the switch is lying.

Testing with Pressure Gauges

A manifold gauge set is the gold standard for AC diagnosis. Connect the blue hose to the low-side port and the red hose to the high-side port. If the pressures are within the normal operating range (roughly 30 PSI low / 200 PSI high on a warm day) but the compressor won't kick on, the switch is likely faulty.

Testing the AC Pressure Switch with a Multimeter

If you're comfortable with electrical tools, a multimeter is incredibly helpful.

• Voltage Check: Most modern switches receive a 5.0-volt reference signal from the car's computer. If you aren't getting voltage at the harness, you have a wiring issue, not a bad switch.
• Continuity Test: On older two-pin switches, you can check for continuity. If there is pressure in the system but no continuity across the switch pins, the internal mechanism is broken.
• Inspect Terminals: Look for green crusty buildup (corrosion) inside the connector. Sometimes a quick cleaning with electrical contact cleaner is all you need.

When to Replace the AC Pressure Switch

You should replace the switch if you see physical damage like a cracked housing or leaking oil around the threads. Also, if your diagnosis shows the switch is intermittently cutting power despite stable pressures, it's time for a new one.

Step-by-Step Guide to Replacing an AC Pressure Switch

If you've determined the switch is bad, replacement is often straightforward, though it requires care.

1. Safety First: Disconnect the negative battery cable. This prevents any electrical shorts while you're working near the compressor wiring.
2. Locate the Sensor: Find the switch on the refrigerant lines. The low-pressure switch is usually on the larger diameter line or the accumulator. The high-pressure switch is on the thinner line.
3. Check for a Schrader Valve: Most modern vehicles have a "Schrader valve" (like a tire valve) behind the pressure switch. This allows you to unscrew the switch without the refrigerant escaping. Warning: If your vehicle does not have this valve, the refrigerant must be professionally recovered before the switch is removed.
4. Disconnect the Harness: Gently squeeze the plastic tab and pull the electrical connector off.
5. Unscrew the Old Switch: Use a wrench to carefully unscrew the switch. You might hear a tiny "hiss" of air; this is normal if there's a Schrader valve.
6. Install the New Switch: Ensure the new O-ring is lubricated with a drop of AC compressor oil. Screw the new ac pressure switch in by hand first to avoid cross-threading, then tighten it with a wrench.
7. Reconnect and Test: Plug the electrical harness back in, reconnect the battery, and start the car. Turn the AC to "Max" and verify the compressor stays engaged and the air gets cold.

Frequently Asked Questions about AC Pressure Switches

What are normal operating pressure ranges for AC systems?

Pressures vary based on the outside (ambient) temperature. On a typical 80°F (27°C) day in Halton Hills:

• Low-side: Should stay between 25 and 40 PSI.
• High-side: Should be roughly 2 to 2.5 times the ambient temperature plus 50. So, at 80°F, you'd expect around 210-250 PSI.

Can a faulty switch trigger specific diagnostic trouble codes?

Yes! If your Check Engine Light is on, look for these codes:

• P0531: AC Refrigerant Pressure Sensor Circuit Range/Performance.
• P0532: AC Refrigerant Pressure Sensor Circuit Low Input (often a short or unplugged sensor).
• P0533: AC Refrigerant Pressure Sensor Circuit High Input.

Is replacing the switch a DIY job or for professionals?

While unscrewing a switch is simple, the refrigerant system is under high pressure. If your car doesn't have a Schrader valve, opening the system will vent refrigerant into the atmosphere, which is illegal and dangerous. Furthermore, if the switch failed because the system is overcharged or blocked, simply replacing the switch won't fix the underlying problem. For most homeowners in Acton or Georgetown, having a professional technician handle the diagnosis ensures that the root cause is addressed.

Conclusion

The ac pressure switch might be small, but it plays a massive role in keeping your vehicle's cooling system safe and efficient. By monitoring the "lifeblood" of your AC, it ensures your compressor lives a long, healthy life. If you're experiencing intermittent cooling or strange noises, don't wait for the system to fail entirely.
