How to Evaluate Ductwork During AC Replacement

Why Understanding How Ductwork Is Evaluated During AC Replacement Saves You Money and Comfort

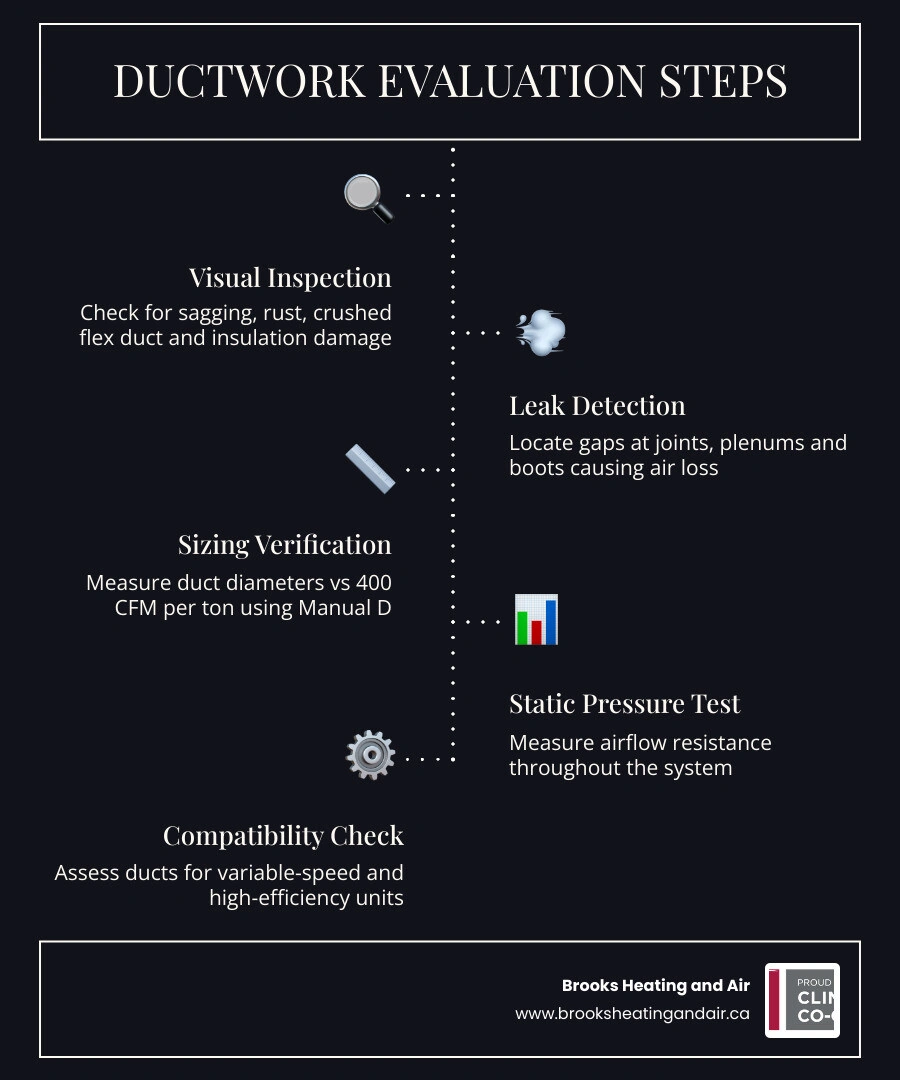

How ductwork is evaluated during AC replacement follows a clear, step-by-step process that every homeowner in Georgetown, Halton Hills, Acton, and Milton should understand before their next AC upgrade. Here's a quick overview:

1. Visual inspection - Technicians check for sagging, disconnected sections, rust, crushed flex duct, and deteriorating insulation
2. Leak detection - Joints, plenums, and boots are inspected for gaps and air loss
3. Sizing verification - Duct diameters are measured against the 400 CFM per ton airflow standard using Manual D calculations
4. Static pressure testing - Measures airflow resistance throughout the system
5. Insulation review - R-values are checked, especially in unconditioned spaces like attics and crawlspaces
6. Compatibility assessment - Existing ducts are evaluated against the requirements of modern, high-efficiency equipment

Imagine spending thousands on a brand-new air conditioner, only to find that certain rooms still feel stuffy in July while others are freezing. It's a frustrating scenario — and it happens more often than you'd think, even here in Georgetown and across Halton Hills.

The reason is almost always the same: the ductwork was never properly evaluated before the new system went in.

Your ducts are the hidden highway of your home's cooling system. A shiny new AC unit can only perform as well as the duct system delivering its output. When those ducts are leaky, undersized, or poorly insulated, research shows that 20% to 30% of cooled air never makes it to the rooms that need it most. That's not a small number — it's the difference between a comfortable home and a frustrating, expensive summer.

With ductwork typically lasting 15 to 20 years — right around the same timeline as most AC units — an AC replacement in June 2026 is often the perfect moment to take a hard look at what's running behind your walls and above your ceilings.

How ductwork is evaluated during ac replacement terms to know:

• ac pressure switch
• how long does an ac replacement take

Why Ductwork Assessment is Critical for Your New Air Conditioner

When you begin deciding on AC replacement, it is incredibly easy to focus entirely on the outdoor condenser unit or the indoor evaporator coil. These are the shiny, high-tech components that get all the marketing attention. However, pairing a state-of-the-art, high-efficiency air conditioner with a degraded, poorly designed duct system is like putting a high-performance sports car engine into a vehicle with flat tires and a clogged exhaust. The engine might run beautifully, but you aren't going anywhere fast, and you'll likely destroy the engine in the process.

The benefits of professional AC installation extend far beyond simply placing the new equipment on a concrete pad and hooking up the electrical lines. A true professional installation always begins with a comprehensive look at your air distribution network.

Here is why evaluating this system is so critical to your home's comfort, energy bills, and equipment longevity:

• Protecting System Lifespan: When air cannot flow freely through your ducts, it creates a phenomenon known as "high static pressure." Think of this as high blood pressure for your HVAC system. It forces the blower motor to work significantly harder to push air through tight or restricted spaces, leading to overheating, electrical strain, and premature motor failure.
• Maximising Energy Efficiency: If your ducts are leaking cooled air into your unfinished basement, crawlspace, or attic, your new air conditioner will have to run much longer cycles to satisfy the thermostat upstairs. This completely negates the energy savings you expected from upgrading to a modern SEER2-compliant system.
• Ensuring Variable-Speed Compatibility: Modern variable-speed and multi-stage air conditioners are highly sensitive to airflow. These advanced systems are designed to run on long, low-capacity cycles to maintain a perfectly consistent temperature and remove humidity. If your ducts are undersized, a variable-speed blower motor will detect the restriction and ramp up its speed to compensate, which increases noise, spikes your energy usage, and can cause the evaporator coil to freeze solid.

How Ductwork Is Evaluated During AC Replacement: The Step-by-Step Process

When we arrive at your home to evaluate your cooling needs, we don't just glance at your registers and call it a day. A professional ductwork assessment is a structured, diagnostic process designed to uncover hidden issues before you make a major financial investment.

As you prepare your home for AC installation, knowing what our technicians are looking for can help you clear access to your mechanical room, attic, or crawlspace. This ensures the evaluation is as accurate and efficient as possible. Here are the core steps we follow:

1. Visual Inspection

We begin by physically inspecting every accessible foot of your ductwork. We look for visible signs of physical damage, such as disconnected metal pipes, crushed or kinked flexible ducts, and rusted plenums. We also check for "dust tracking" — dark streaks of dust near joints and seams that indicate air is actively escaping or being pulled in from unconditioned wall cavities.

2. Leak Detection

Because a vast majority of ductwork is hidden behind drywall, we use specialized tools to check for air loss. We inspect the connections where the main supply plenum meets your furnace or air handler, as well as the boots where the ducts connect to your floor or ceiling registers. We also check the integrity of the vapor barrier on insulated ducts to ensure moisture isn't penetrating the insulation and causing mold growth.

3. Static Pressure Testing

This is the most critical diagnostic test we perform. By inserting specialized pressure probes into both the supply and return plenums, we can measure the total external static pressure of your system. This test tells us exactly how much resistance the air faces as it moves through your home. If the pressure readings are too high, it indicates that your ductwork layout is choking your system.

By taking the time to complete these diagnostics, we can accurately determine how long does an AC replacement take and whether any corrective duct modifications must be scheduled alongside the equipment installation.

How Ductwork Is Evaluated During AC Replacement for Sizing and Airflow

Airflow is the lifeblood of central air conditioning. In the HVAC world, we measure airflow in Cubic Feet per Minute (CFM). The absolute gold standard for residential air conditioning is 400 CFM per ton of cooling capacity.

If you are planning an air conditioner installation Acton, we must verify that your existing supply and return trunks can handle the specific CFM requirements of your new unit. To do this, we use standard industry protocols like Manual D calculations. This mathematical process takes into account the friction rate of the duct material, the length of the duct runs, and the number of sharp turns or elbows the air must navigate.

To give you an idea of how duct sizes translate to airflow capacity, look at this standard friction rate table:

This table highlights a very common issue we encounter. If you are upgrading your home to a 3.5-ton AC system, that unit requires 1,400 CFM of total airflow to operate safely and efficiently (3.5 tons x 400 CFM). If your home only has a single 16-inch return air duct, that duct can only handle approximately 1,050 CFM.

Your system will be 350 CFM short of its target, leaving your new air conditioner starved for air. In this scenario, we would recommend adding a second return duct to balance the system and prevent the air from sounding "angry" and noisy as it struggles to push through a restricted space.

How Ductwork Is Evaluated During AC Replacement for Compatibility with Modern Systems

If your existing ductwork was installed in the 1980s or 1990s, it was designed for a completely different generation of heating and cooling equipment. Older air conditioners and furnaces used standard permanent split capacitor (PSC) blower motors, which were simple, single-speed motors that pushed air regardless of static pressure, even if it meant wasting substantial amounts of electricity.

As detailed in our AC installation Milton guide, modern high-efficiency air conditioners rely on electronically commutated motors (ECM) or variable-speed blowers to meet strict SEER2 energy standards.

When we evaluate your old ducts for compatibility with these new systems, we look at several modern variables:

• Variable-Speed Motor Sensitivity: If a variable-speed blower motor detects high static pressure from restricted or undersized ducts, it will automatically ramp up its speed to deliver the programmed airflow. While this keeps you cool, it makes the system incredibly noisy and can cause the motor to burn out prematurely.
• Filtration Resistance: Many homeowners want to upgrade to high-efficiency MERV 11 or MERV 13 air filters to improve indoor air quality. However, these thicker filters create additional resistance to airflow. We must evaluate whether your return air ductwork is large enough to handle the combined resistance of a high-efficiency filter and a modern AC evaporator coil.
• Return Air Capacity: Older homes often have plenty of supply vents but very few return air grilles. Modern systems require a balanced loop; the amount of air being pulled out of your rooms must match the amount of conditioned air being pushed in. If your returns are insufficient, we may recommend installing additional return air pathways to keep the system balanced.

Repairing vs. Replacing Your Ducts: Making the Right Choice

Once the evaluation is complete, the big question is: do you repair your existing ducts, or do you replace them entirely?

When should you repair or replace your AC, the decision is usually made based on the age and condition of the mechanical equipment. The exact same logic applies to your ductwork. Understanding when to repair vs replace your HVAC system as a cohesive unit is the best way to secure AC repair vs new unit long-term savings.

Here is how we help homeowners in Georgetown and Halton Hills make the right choice:

When to Repair and Seal Existing Ducts

If your ductwork is structurally sound, properly sized, and made of durable sheet metal, a complete replacement is rarely necessary. Instead, we focus on targeted repairs and professional sealing.

Instead of using standard duct tape — which dries out, loses its adhesive quality, and fails within a few years — we use professional-grade paint-on mastic sealant reinforced with fiberglass mesh. This creates a permanent, airtight seal over joints, seams, and connections, recovering up to 20% to 30% of lost airflow and preventing dusty attic or basement air from being sucked into your breathing space.

When a Full Replacement is Necessary

Ductwork typically has a lifespan of 15 to 20 years. Over time, flexible plastic duct liners can become brittle, crack, and collapse. In older homes, insulation can degrade, or pests may have chewed through the duct walls, creating massive leaks and sanitary issues.

Furthermore, if the original duct design is fundamentally flawed — such as main trunk lines that are far too narrow for modern equipment — sealing them is simply throwing good money after bad. In these cases, a full or partial ductwork replacement is the only way to ensure your new air conditioner can deliver the comfort and efficiency you are paying for.

Frequently Asked Questions About Ductwork Inspections

To help you navigate your upcoming AC upgrade, we have compiled some of the most common questions we hear from homeowners across Milton, Acton, and Georgetown.

How long does a professional ductwork inspection typically take?

A thorough, professional ductwork evaluation usually takes between 45 and 90 minutes. This is not a simple visual scan; it is a detailed diagnostic process.

During this window, our technician will perform a visual inspection of all accessible duct runs, measure duct diameters to verify capacity, and conduct static pressure tests at your indoor air handler. We believe this time is an essential investment to ensure your new system is configured correctly from day one. To keep your entire system in top-tier shape year-round, be sure to review our HVAC maintenance tips every homeowner should know.

What are the risks of using undersized or leaky ducts with a new AC?

Using compromised or improperly sized ducts with a brand-new air conditioner carries several severe risks:

• Frozen Evaporator Coils: Undersized ducts restrict airflow across the indoor evaporator coil. Without enough warm indoor air passing over the coil, the refrigerant inside gets too cold, causing the condensation on the coil to freeze into a solid block of ice, shutting down your system.
• Premature Compressor Failure: Restricting airflow increases operating pressures and temperatures inside your cooling system. This places immense mechanical stress on the compressor — the expensive "heart" of your outdoor AC unit — leading to premature failure that may not be covered by manufacturer warranties if the system was installed on sub-standard ductwork.
• Whistling and Loud Air Noise: When too much air is forced through a duct that is too small, it creates high-velocity airflow. This makes your vents sound loud, breezy, or even whistle like a tea kettle, disrupting the quiet peace of your home.

Is new ductwork automatically included with a standard AC installation?

No, a standard central air conditioner replacement does not automatically include new ductwork. A typical replacement focuses on the outdoor condenser, the indoor evaporator coil, the copper refrigerant lines, and the electrical connections.

Your existing ductwork is treated as an independent infrastructure. If our evaluation reveals that your ducts are leaky or undersized, any repairs, sealing, or custom modifications will be detailed as a separate, transparent scope of work in your installation plan.

Conclusion

At Brooks Heating and Air, we have been serving our neighbours in Georgetown, Halton Hills, Acton, and Milton, Ontario since 2009. As a family-owned and locally-operated business, we don't believe in cutting corners or ignoring the hidden details that dictate your home's comfort.

Our founder, Chris Brooks — known affectionately as "the Colonel" thanks to his distinguished 25-year military career — has instilled a culture of military precision, absolute honesty, and quality workmanship into everything we do. We are proud members of the ClimateCare Co-operative, Canada's largest HVAC co-operative. This partnership gives us the buying power and advanced technical training resources of a massive national company, while allowing us to maintain the warm, personalized, family-first service our clients love.

We partner with trusted industry-leading brands like Carrier and Lennox to provide you with the most reliable, energy-efficient cooling systems on the market. Whether you need a simple system tune-up, a complete system overhaul, or want to protect your investment with our comprehensive Brooks Care Membership — which offers 24-hour priority service, a 20% discount on repairs, and absolutely no overtime charges — we are here for you. We stand behind our work with a 100% satisfaction guarantee, a one-year satisfaction guarantee on equipment purchases, and a seven-day service commitment. Best of all, we are available to answer your calls 24/7, ensuring your family is never left stranded in the summer heat.

Don't leave your comfort to chance. Schedule your professional AC replacement in Georgetown today and let our expert team ensure your home's "hidden highway" is ready to deliver years of quiet, efficient, and reliable cooling.
