Tracing Low Hot Water Pressure Back to a Clogged Tankless Inlet Screen

The Panic of Sudden Pressure Drops at the Tap

Tracing low hot water pressure back to a clogged tankless inlet screen is often the quickest way to solve the mystery when your tap is turned all the way open, but water is barely sputtering out. When you experience this kind of sudden flow restriction, the immediate reaction is often panic. It is completely natural to assume the worst—that a hidden water pipe has burst behind your drywall, or that a major plumbing leak is actively flooding your basement. However, before you start tearing into your walls looking for a catastrophic failure, isolating the issue to your water heater is usually the most direct path to a solution.

In our years serving Georgetown homeowners, our team at Brooks Heating & Air has found that if you need professional HVAC and water heating services to restore your home's water flow, the smartest first step is to schedule a tankless water heater diagnostic.

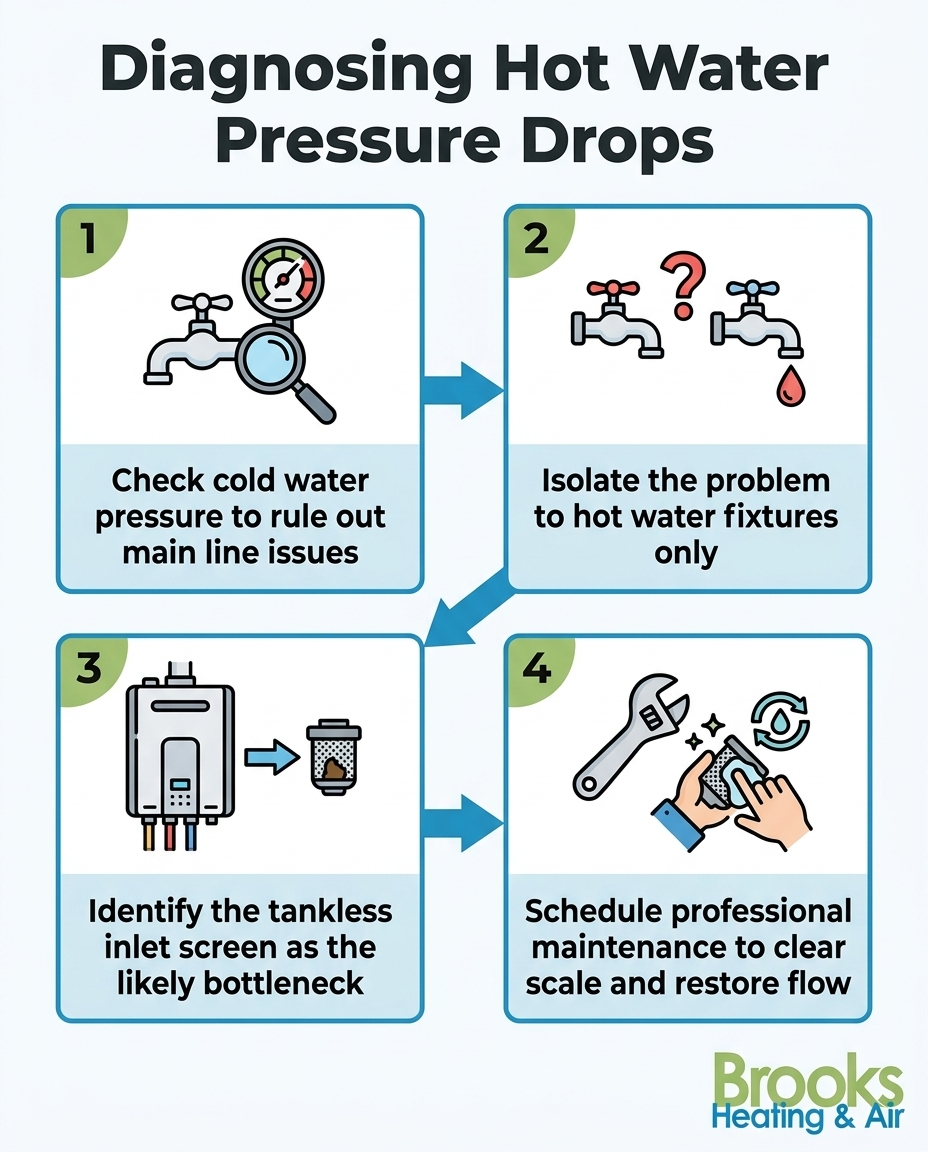

The Initial Homeowner Diagnostic Test

The critical first diagnostic step for any homeowner is to test the cold water tap. This simple action immediately narrows down the root cause of your problem. Turn on the cold water at the exact same sink or shower where you noticed the weak flow. If the cold water blasts out at full strength, you can breathe a sigh of relief. You are not dealing with a whole-house plumbing emergency, a failed main water line, or a compromised municipal supply.

Instead, the issue is isolated strictly to the appliance responsible for heating your water. When you experience a significant drop in GPM flow rate isolated to hot water taps, the water heater itself becomes the primary suspect. Modern plumbing systems are highly segmented, and if the cold side is fully pressurized, the drop in hot water pressure is almost always an appliance restriction rather than a structural plumbing failure.

Common signs to look for during this initial test:

• Sputtering or spitting: Air mixed with a weak stream of hot water when the tap is first opened.

• Inconsistent pressure: The flow starts strong for two seconds, then immediately drops to a trickle.

• Isolated locations: The weak flow happens at the kitchen sink, the bathroom vanity, and the shower simultaneously, but only on the hot side.

Why Your Water Heater Is the Primary Suspect

The Problem: You have verified that your cold water is running perfectly, but your hot water is barely usable. The discrepancy between the two lines can be confusing, especially if your home has relatively new plumbing fixtures. Homeowners frequently misdiagnose this symptom as a failing pressure reducing valve (PRV) or a blocked main line.

The Cause: Your home's water supply enters through a single main line. From there, it splits. One path goes directly to your cold water fixtures, while the other path routes into your water heater. Modern condensing tankless water heaters act as a highly sophisticated bottleneck in this system. The water must pass through the unit's internal filtration, flow sensor, and heat exchanger before it can exit and travel to your hot water taps. If the main line or PRV were failing, both hot and cold water would be equally affected. Because the restriction is only on the hot side, the blockage must exist somewhere between the cold water inlet of the tankless unit and the hot water outlet.

The Solution: Systematically testing multiple fixtures across the home confirms the appliance is the bottleneck. By turning on sinks, showers, and tubs one by one, you can map the pressure drop. If every hot water tap in the house suffers from the exact same weak flow, the restriction is centralized at the water heater.

Troubleshooting the Source of Low Pressure

• Low pressure on both hot and cold water at a single sink — Likely Source of Restriction: Clogged faucet aerator or local shut-off valve — Recommended Action: Clean the aerator and ensure under-sink valves are fully open.

• Low pressure on both hot and cold water throughout the entire house — Likely Source of Restriction: Failing Pressure Reducing Valve (PRV) or municipal issue — Recommended Action: Contact the municipal water provider or a whole-house plumber.

• Normal cold water, but low hot water pressure throughout the entire house — Likely Source of Restriction: Restriction inside the tankless water heater — Recommended Action: Request professional HVAC maintenance to inspect internal filters.

The Impact of Hard Water on Tankless Components

To understand why a tankless water heater suddenly restricts water flow, you have to look at the chemistry of the water entering your home. Here in Georgetown, our technicians frequently deal with hard water, which is defined by elevated levels of dissolved minerals, primarily calcium and magnesium. While these minerals are perfectly safe for drinking, they are incredibly hostile to the sensitive internal components of high-efficiency plumbing appliances.

When hard water is rapidly heated, a chemical reaction occurs. The heat causes the dissolved calcium and magnesium to precipitate out of the water, crystallizing into a solid, chalky substance known as scale. Modern condensing tankless water heaters are particularly susceptible to this process because they heat water on demand at very high temperatures, creating the perfect environment for rapid scale formation. If you want to dive deeper into this specific regional issue, learning how hard water affects tankless units in Ontario is essential for long-term appliance care.

The Winter Temperature Factor

The local climate plays a massive, often overlooked role in how quickly this scale forms. During the harsh winter months, Ontario's groundwater temperatures drop significantly. When this near-freezing water enters your tankless unit, the system has to work much harder to raise the water to your desired output temperature (typically around 120°F). This massive "temperature rise" forces the burners to fire at maximum capacity.

The intense heat required to bridge the gap between freezing groundwater and a hot shower accelerates the precipitation of minerals. The resulting scale flakes off and circulates through the unit's narrow internal pathways. Combined with any physical sediment or rust traveling through older municipal pipes, this mineral buildup creates a dense sludge that inevitably finds its way to the unit's primary defense mechanism: the inlet screen.

How the Inlet Screen Protects Your System

The Problem: As scale and sediment accumulate inside the water supply lines, they pose a severe threat to the tankless unit's heat exchanger. The heat exchanger consists of very narrow, tightly coiled copper or stainless steel tubing. If solid debris were allowed to enter these tubes, it would cause permanent blockages, localized overheating, and eventually, a catastrophic rupture of the heat exchanger itself.

The Cause: To prevent this expensive failure, manufacturers install a physical barrier exactly where the cold water enters the unit. This component is the inlet screen (or inlet filter). It is a fine stainless steel mesh designed to catch rust, sand, municipal debris, and crystallized hard water scale before they can penetrate the sensitive internal components. Over time, as this screen diligently traps debris, the mesh becomes heavily coated. The physical holes in the screen shrink, allowing less and less water to pass through.

The Solution: When you notice a significant drop in GPM flow rate isolated to hot water taps, you are actually witnessing the inlet screen doing its job. It is deliberately sacrificing water pressure to protect the heat exchanger from permanent destruction.

Symptoms of a Failing Screen

The progression of a clogged inlet screen rarely happens overnight. Homeowners usually experience a specific sequence of symptoms as the mesh becomes increasingly obstructed:

• Stage 1 (Partial Clog): You might notice that it takes slightly longer to fill a bathtub, or the shower pressure feels just a bit weaker than it did a few months ago.

• Stage 2 (Heavy Restriction): You cannot run two hot water fixtures at the same time. If the dishwasher is running, the shower pressure drops to an unacceptable trickle.

• Stage 3 (Total Obstruction): The hot water tap yields almost no pressure at all, and the water that does come out is entirely cold.

The Chain Reaction: Flow Rates and Burner Ignition

A clogged inlet screen does much more than just ruin your shower pressure; it can actually stop the production of hot water entirely. This happens due to the sophisticated sequence of operations built into modern condensing tankless water heaters. Unlike traditional tank heaters that keep a large reservoir of water hot 24/7, tankless units only activate when they detect a demand for hot water.

When you open a hot water tap, water begins to flow through the unit. Immediately past the inlet screen sits a highly sensitive component called a flow sensor. As water pushes past this sensor, an internal turbine spins, sending a voltage signal to the unit's main control board. The control board reads this signal to determine exactly how much water is moving through the system.

Here is the critical catch: every tankless unit has a minimum flow rate requirement for activation. Typically, this threshold is between 0.5 and 0.75 Gallons Per Minute (GPM). If the flow rate does not meet this minimum requirement, the control board will refuse to open the gas valve and ignite the burner.

Why Your Hot Water Turns Cold

When the inlet screen becomes severely clogged with hard water scale, it restricts the incoming water so heavily that the flow drops below the 0.5 GPM threshold. Even though you have the hot water tap turned all the way open, the flow sensor inside the unit is not spinning fast enough to register the demand.

The control board assumes the tap is closed and keeps the burners shut off as a safety precaution. This chain reaction explains why homeowners with a clogged inlet screen often experience the dual frustration of incredibly low water pressure combined with completely cold water. The system has simply locked itself out due to lack of flow.

Professional Diagnostics: Avoiding the Plumbing Misdiagnosis

When faced with a sudden loss of hot water pressure, the instinct to call a general plumber is strong. However, treating an appliance restriction like a structural plumbing failure can lead to incredibly costly misdiagnoses. General plumbers are trained to find and repair pipe leaks, replace PRVs, and clear main line blockages. If a technician is unfamiliar with the internal sensors of high-efficiency HVAC equipment, they might begin cutting into drywall looking for a leak that simply does not exist.

Opening a gas-fired appliance, handling sensitive electronic control boards, and manipulating internal filtration barriers is strictly a job for licensed HVAC professionals. Our team at Brooks Heating & Air brings specialized diagnostic expertise to Georgetown homes, ensuring that thorough, targeted troubleshooting prevents homeowners from paying for unnecessary plumbing leak repairs.

The Professional Maintenance Process

When a licensed technician arrives to address a significant drop in GPM flow rate isolated to hot water taps, they follow a strict, appliance-specific protocol to safely restore your system. Enrolling in a routine preventative maintenance plan ensures these vital steps are handled before you lose pressure entirely:

• Safe Isolation: The technician shuts off the gas supply, disconnects electrical power, and isolates the unit from the main water lines using the service valves.

• Screen Extraction and Cleaning: The internal inlet screen is carefully removed, inspected for damage, and meticulously cleaned of all hard water scale and municipal sediment.

• System Descaling: Because a clogged screen indicates heavy mineral presence, the technician will typically perform a full descaling flush, circulating a specialized solution through the heat exchanger to dissolve internal buildup.

• Flow Verification: After reassembly, the unit is fired up, and the technician verifies that the flow sensor is registering the correct GPM and that the burners are modulating properly.

Frequently Asked Questions About Tankless Pressure Drops

Why is my hot water pressure suddenly so low?

Sudden low hot water pressure is usually caused by an obstruction in the water heater itself, most commonly a debris-clogged inlet screen. When scale and sediment block this internal filter, water cannot pass through the unit to reach your taps. If your cold water pressure remains strong, the issue is almost certainly isolated to the appliance.

Why is my tankless water heater losing pressure?

Tankless units lose pressure when sediment and hard water scale restrict the flow of water entering the system. Because these units heat water on demand, any blockage at the inlet forces the entire hot water system to lose pressure. Routine professional descaling and filter cleaning are required to keep the pathways clear.

Can a water heater cause low water pressure?

Yes, but it will only affect the hot water taps in your home. Cold water pressure will remain normal because it bypasses the water heater entirely. If a tankless water heater's internal pathways or inlet screen become obstructed, it acts as a bottleneck for the entire hot water supply.

How do you fix low hot water pressure?

The safest and most effective way to fix low hot water pressure is by having a licensed professional diagnose the unit, clean the inlet filter, and perform a full descaling flush. Attempting to open a gas appliance and remove internal components yourself can lead to water damage or voided warranties.

Does hard water affect tankless water heater flow rates?

Yes, the dissolved minerals in hard water create scale buildup that rapidly restricts internal flow pathways. As this scale accumulates on the inlet screen and inside the heat exchanger, it physically blocks the water, causing a noticeable drop in flow rate at the tap.

How often should a tankless water heater inlet screen be cleaned?

It should be inspected and cleaned annually during routine professional maintenance, especially in hard water regions. Homes with exceptionally hard water or older municipal plumbing may require this service even more frequently to prevent sudden pressure drops.

Restoring Your Home's Hot Water Supply

Experiencing a sudden drop in hot water pressure is frustrating, but it does not have to be a cause for panic. By testing your cold water taps and isolating the issue, you can confidently rule out a catastrophic plumbing disaster. Understanding that your modern condensing tankless water heater relies on a clean inlet screen to protect its internal components helps make sense of the sudden restriction.

Addressing restricted flow early is vital before it causes repeated ignition failures or permanent heat exchanger damage. If your hot water has slowed to a trickle, skip the unnecessary drywall repairs and trust a specialized diagnostic approach. Reach out today to schedule a tankless water heater diagnostic and safely restore optimal flow and temperature to your home.
