Don't Get Stuck: What a Bad AC Pressure Switch Feels Like

Why Your AC Pressure Switch Is Critical for Home Comfort

Imagine this: it's the peak of a sweltering summer afternoon in Ontario, and suddenly, the cool air from your vents stops. The house starts to feel stuffy, and the hum of your outdoor air conditioner goes silent. This frustrating scenario is often caused by the failure of a tiny, overlooked component: your AC pressure switch. This small but mighty safety device is the unsung hero that protects your entire air conditioning system from catastrophic, high-pressure and low-pressure conditions. When it fails, your home comfort disappears in a hurry, leaving you to sweat it out.

Understanding the warning signs of a bad AC pressure switch is key to preventing a complete system breakdown. The symptoms are often mistaken for other major AC problems, but they have a distinct pattern:

• AC blows warm air instead of cold: The switch may be incorrectly telling your compressor—the engine of your AC—to stay off, preventing the cooling cycle from ever starting.
• System shuts off unexpectedly: A faulty switch can get false readings, causing it to shut the system down randomly to "protect" it from a non-existent danger.
• Strange clicking or buzzing noises: This often indicates the switch is rapidly turning the compressor on and off, a damaging cycle caused by erratic pressure signals.
• Intermittent cooling performance: The AC works one minute and not the next. This is a classic sign of a failing switch that can't maintain a consistent signal.
• Frozen outdoor unit: If the low-pressure switch fails to detect a refrigerant leak, the system can keep running, causing ice to build up on the coils and lines.

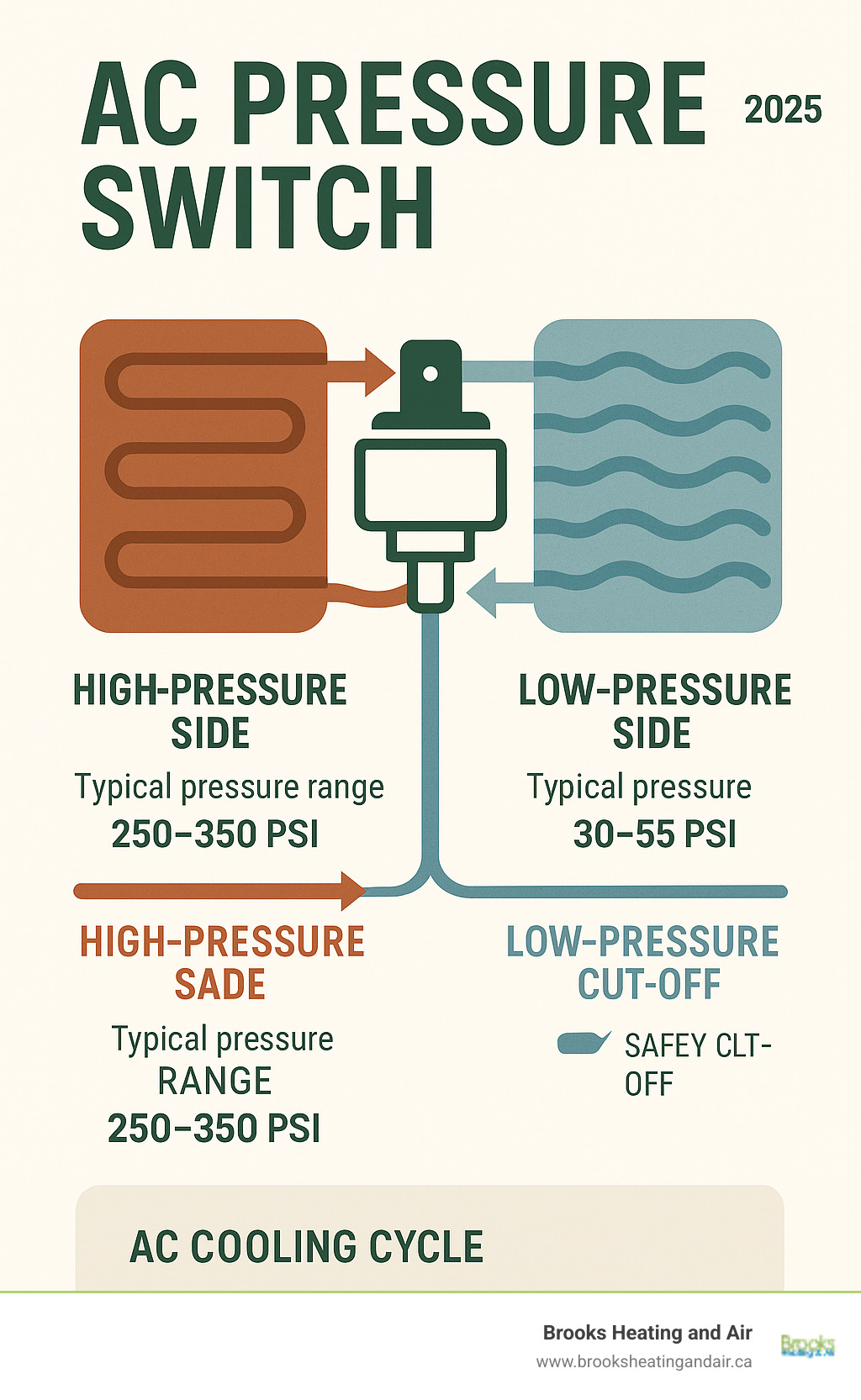

The pressure switch acts as a vigilant guardian for your AC. It constantly monitors the refrigerant pressure on both the high-pressure side (typically 250-350 PSI) and the low-pressure side (30-55 PSI). If the pressure veers outside these safe operating windows, the switch immediately cuts power to the compressor, saving it from irreversible damage.

But here's the critical issue: a faulty pressure switch can't tell the difference between a safe and a dangerous condition. It might shut off your perfectly fine AC system during a heatwave, a phenomenon known as a "nuisance trip." Even worse, it might fail to shut the system down during a genuine pressure crisis, like a refrigerant leak, allowing the compressor to run without proper lubrication until it grinds itself to destruction.

Most homeowners don't give their pressure switch a second thought until their AC gives up on the hottest day of the year. The good news? The warning signs are clear if you know what to look for, and this guide will walk you through everything you need to know.

What is an AC Pressure Switch and How Does It Work?

Think of your AC pressure switch as the watchful guardian of your cooling system's health. Much like a lifeguard constantly scans the pool for signs of trouble, this small but essential device keeps a constant eye on your system's refrigerant pressure levels. Its sole purpose is to prevent expensive, and often irreparable, damage to the most critical component of your air conditioner: the compressor.

At its core, an AC pressure switch is an electromechanical safety valve. It's designed to open or close an electrical circuit based on the pressure of the refrigerant flowing through your AC lines. When pressure levels surge too high or plummet too low, the switch acts instantly, cutting power to the compressor clutch and shutting the system down. Without this vital protection, a single pressure-related problem—like a simple blockage or a minor leak—could quickly escalate and destroy your entire AC unit, leading to a replacement that costs thousands of dollars.

Here’s a closer look at how it functions within the grander scheme of your AC system. Your air conditioner works by circulating a special fluid called refrigerant through a closed loop of coils and pipes. This process, known as the vapor-compression refrigeration cycle, involves the refrigerant constantly changing between a liquid and a gas, absorbing heat from inside your home and releasing it outside. These changes in state are driven by drastic changes in pressure, orchestrated by the compressor. The AC pressure switch ensures these pressure fluctuations stay within a precisely engineered safe range. If a problem arises—such as a refrigerant leak causing pressure to drop, or a blocked condenser coil causing pressure to skyrocket—the switch is the first line of defense, shutting everything down before the compressor can be damaged.

To provide comprehensive protection, most modern residential AC systems use two separate pressure switches. One is dedicated to monitoring the high-pressure side of the system, while the other watches over the low-pressure side. This dual-switch, or binary, system creates a robust safety net that protects your AC from virtually any pressure-related fault. For a deeper dive into refrigerant-specific problems that can trigger these switches, our guide on Detecting and Addressing AC Refrigerant Issues provides more detailed information.

Understanding the Role of a High and Low AC Pressure Switch

Your AC system operates under a wide pressure differential, and danger can arise from either extreme. That's why it's protected by two distinct types of AC pressure switches, each with a specific job.

The high-pressure switch is located on the high-pressure line (the "discharge side") that runs from the compressor to the condenser coil in your outdoor unit. This is where the refrigerant is a hot, high-pressure gas. The switch's job is to detect when this pressure climbs to dangerous levels. During normal operation on a hot day, this pressure might be between 250-350 PSI. However, if it spikes to a critical point, typically around 425 PSI, the switch opens the circuit and shuts down the compressor immediately.

What causes such high pressure? Common culprits include an overcharged system (too much refrigerant added during a service), a severely dirty condenser coil that can't release heat effectively, or a failing condenser fan motor that isn't pulling enough air over the coils. Without the high-pressure switch, the compressor would continue to run against this immense pressure, causing it to overheat, suffer internal damage, or even rupture refrigerant lines.

Conversely, the low-pressure switch is installed on the low-pressure line (the "suction side"), which carries cool, low-pressure gaseous refrigerant from the indoor evaporator coil back to the compressor. This switch watches for dangerously low pressure. The normal range on the low side is typically 30-55 PSI. If the pressure drops below a set threshold, often around 33 PSI, the switch cuts power to prevent the compressor from running in a starved state.

Low pressure is a telltale sign of a problem, most commonly a refrigerant leak. It can also be caused by an undercharged system, a frozen evaporator coil (which restricts refrigerant flow), or a blockage elsewhere in the system. Running a compressor without enough refrigerant flowing back to it is like running a car engine without oil—the refrigerant carries lubricating oil with it, and a lack of flow will cause the compressor's moving parts to overheat, seize, and fail catastrophically.

Common Causes of a Failing AC Pressure Switch

Even the most robust AC pressure switch is not immune to failure. After years of service, several factors can cause it to malfunction.

• Electrical Issues: These are among the most frequent culprits. The switch's location in the outdoor unit exposes it to the elements. Moisture can lead to corroded electrical connections and terminals, impeding the flow of electricity. Constant vibration from the compressor can cause worn or frayed wiring, leading to intermittent or failed signals. Internal contact points within the switch can also wear out or become pitted from years of electrical arcing each time the switch activates.

• Refrigerant Leaks: A slow refrigerant leak is particularly hard on a pressure switch. As the refrigerant level drops, the system's low-side pressure will frequently dip below the cut-off threshold. This forces the switch to cycle the compressor on and off repeatedly—a condition known as short cycling. This constant, rapid switching action accelerates wear and tear on the switch's internal mechanical and electrical components, leading to premature failure.

• System Blockages: Debris can cause major problems. A severely clogged air filter or a dirty evaporator coil can restrict airflow, causing the coil to freeze and pressure to drop, triggering the low-pressure switch. A blocked filter drier or a malfunctioning thermal expansion valve can also create abnormal pressure readings that confuse the switch. Over time, being subjected to these incorrect pressure signals can strain the switch and damage its calibration.

• Physical Damage and Wear and Tear: The outdoor unit endures a harsh environment, from blistering summer heat to freezing winter temperatures. Over many years, the plastic and metal components of the AC pressure switch can become brittle and fail. Vibrations from the system's normal operation can cause mechanical fatigue. It can also be damaged accidentally by lawn equipment, hail, or pests chewing on wires. After a decade or more of faithful service, simple old age is a common reason for replacement.

If you suspect electrical problems are at the root of your AC troubles, our guide on AC Circuit Breaker Issues & Solutions can help you troubleshoot the broader electrical system of your unit.
