Deciphering the Blinking Lights on Your Furnace When the AC Won't Start

Why Is My Furnace Blinking When the AC Is Broken?

Why is your heating equipment acting up in the middle of a July heat wave? Here at Brooks Heating & Air, we often get frantic calls from Georgetown homeowners facing this exact scenario. If you find yourself deciphering the blinking lights on your furnace when the AC won't start, you are dealing with one of the most confusing HVAC issues a homeowner can face. The house is uncomfortably hot, the outdoor air conditioning unit is completely silent, and down in the basement or utility closet, your furnace is flashing a mysterious red, green, or amber light.

Most homeowners assume the indoor and outdoor units operate independently, but they are deeply connected. Even during the peak of the summer cooling season, your indoor air handler—which houses the furnace control board—acts as the central brain for the entire system. When a critical fault occurs anywhere in the cooling cycle, that indoor board will shut everything down to prevent severe mechanical damage.

Understanding what that flashing light means is the first step toward getting your home comfortable again. While our team always recommends leaving electrical repairs to licensed technicians, learning how to safely observe the diagnostic code gives you a massive head start. By noting the exact sequence, you can check your HVAC FAQs to understand the severity of the problem before you schedule AC repair service.

The Shared Connection: Why Your Furnace Controls the Air Conditioner

To understand why a furnace flashes an error code during the summer, we always explain to our customers how their HVAC system communicates. Your thermostat does not talk directly to the large metal box sitting in your backyard. Instead, it sends all of its commands straight to the indoor furnace control board.

The 24-Volt Nervous System

The control board acts like a traffic cop for your home's climate control. It uses a built-in transformer to step down your home's high-voltage electricity into a safe, low-voltage 24-volt circuit. This 24-volt circuit serves as the communication network for your entire system.

• The Call for Cooling: When the thermostat detects the room is too warm, it sends a 24-volt signal to the furnace board.

• Activating the Blower: The board first turns on the indoor blower motor to start circulating air through your ductwork.

• Engaging the Condenser: Simultaneously, the board sends a 24-volt signal outside to a component called the contactor, which pulls in and starts the heavy-duty AC compressor.

If there is a failure at the indoor control board—such as a blown fuse, a tripped safety switch, or a locked-up blower motor—that vital 24-volt signal never makes it outside. The outdoor unit remains perfectly fine mechanically, but it stays off because it never received the command to turn on.

This means a blinking light on your indoor equipment in July is not a heating error. It is a system-wide diagnostic alert indicating that the central "brain" has halted operations. If you are dealing with an AC not cooling properly, the indoor control board is often the very first place our professional technicians will look.

How to Safely Count Short and Long LED Flash Sequences

When you discover a flashing light on your furnace, your immediate instinct might be to pull off the metal door to get a closer look. Our team strongly advises against this. Modern HVAC systems are equipped with a critical safety mechanism called a door switch. The moment you remove the blower compartment panel, this switch pops out and instantly cuts all electrical power to the unit.

When the power is cut, the control board resets. It will completely erase the active error code from its memory, making it much harder for our technicians to diagnose the root cause of the failure. To safely read the code without wiping the system's memory, follow these specific visual observation steps.

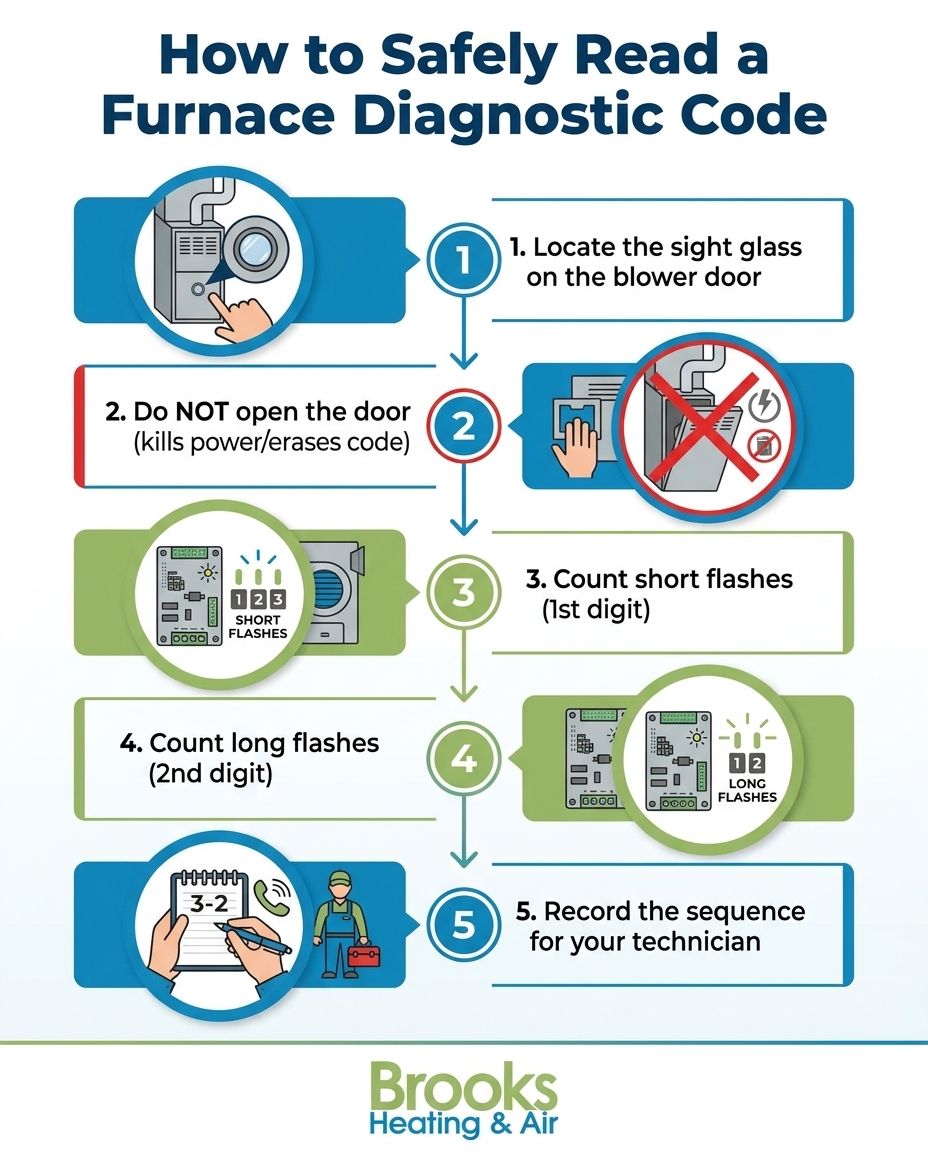

Step-by-Step Diagnostic Observation

1. Leave the power on: Do not flip the breaker, and do not touch the thermostat. Leave the system exactly as you found it.

2. Locate the sight glass: Look at the lower metal panel of your furnace (the blower door). You will find a small, clear plastic window—roughly the size of a quarter—designed specifically for viewing the control board.

3. Watch the LED light: Peer through the sight glass. You will see a small LED light on the circuit board flashing. It may be red, green, or amber depending on the brand.

4. Count the short and long LED flash sequences: Most modern control boards communicate in a two-digit format. You will typically see a series of rapid, short flashes followed by a brief pause, and then a series of slower, long flashes.

5. Record the sequence: Write down exactly what you see. For example, if you observe three short flashes followed by two long flashes, you are looking at Code 32.

6. Check the legend: Once you have written the code down, you can safely turn off the power and remove the door. Look at the back of the metal panel you just removed. There will be a printed sticker detailing what every code means.

By recording the short and long LED flash sequences before touching anything, you preserve the most important piece of evidence needed to fix your system.

Common Furnace Error Codes During the Summer Cooling Season

Furnace control boards are programmed with dozens of different error codes, but the faults that trigger during the summer cooling season are very different from the ones that happen in the winter. While winter codes usually point to ignition failures or flame sensor issues, summer codes almost exclusively point to airflow restrictions, water backups, or electrical shorts.

The Blown 3-Amp Fuse

In our years of servicing Georgetown ON neighborhoods, one of the most frequent culprits our team finds behind a dead AC and a blinking indoor light is a blown 3-amp automotive-style fuse located directly on the furnace control board. This tiny fuse protects the delicate board from electrical surges on the 24-volt circuit.

The quick fix: While the fuse itself is cheap, replacing it without finding the root cause is pointless—it will just blow again immediately. During the summer, we often see this fuse blow because the low-voltage wire running outside to your AC condenser has been damaged. Weed whackers, lawnmowers, or even chewing rodents often nick this wire, causing a short circuit that instantly pops the indoor fuse.

Indoor Blower Motor Failure

Your air conditioner cannot function without the indoor blower motor. The outdoor unit chills the refrigerant, but it is the indoor fan that actually pushes warm house air over the freezing cold evaporator coil. If the furnace board detects that the blower motor has failed, is drawing too much amperage, or cannot reach the correct RPMs, it will flash an error code and lock out the outdoor AC.

This lockout is a vital safety feature. If the outdoor unit continued to run while the indoor fan was dead, the indoor evaporator coil would quickly freeze solid, turning into a block of ice that could severely damage the compressor.

Heating vs. Cooling Faults

• Flame Sensor Lockout — Typical Season: Winter — System Impact: Furnace blows cold air or shuts down entirely.

• Low-Voltage Short Circuit — Typical Season: Summer — System Impact: Blown board fuse; outdoor AC will not turn on.

• Roll-Out Switch Tripped — Typical Season: Winter — System Impact: Burners shut down to prevent fire hazards.

• Blower Motor Overload — Typical Season: Year-Round — System Impact: System locks out to prevent coils from freezing.

Because these codes involve testing electrical resistance and verifying voltage drops, they require a licensed professional equipped with a multimeter to safely diagnose and repair.

The Condensate Culprit: How High Humidity Interrupts Your AC

When discussing summer AC failures tied to the indoor furnace, our technicians know that water is often the hidden culprit. The hot, humid Georgetown summers cause heavy condensation to form on your indoor evaporator coil. As warm, moist air blows across the freezing cold coil, the humidity is pulled out of the air, turning into liquid water that drips down into a drain pan.

The Mechanics of Condensation Management

On a peak summer day, a central air conditioner can pull gallons of water out of your home's air. This water is supposed to collect in the primary drain pan and flow safely outside or into a floor drain through a PVC pipe. However, over time, dust, dirt, and biological growth can turn into a thick sludge that clogs this drain line.

If the drain line clogs, the water has nowhere to go. It begins to fill the pan, threatening to overflow and cause catastrophic water damage to your ceilings, floors, or the furnace electronics located just below it.

How the Float Switch Protects Your Home

To prevent this flooding, most modern systems are equipped with a condensate float switch. This small safety device sits inside the drain line or a secondary drain pan. It contains a tiny float that rises as the water level increases.

• The Trigger: When the water reaches a dangerously high level, the float lifts and physically breaks the 24-volt electrical circuit.

• The Shutdown: Because this circuit is directly tied to the furnace control board, the board instantly loses communication with the thermostat.

• The Result: The board shuts off the outdoor AC condenser to stop the production of condensation, and it begins flashing an error code to alert you to the problem.

This is why keeping your condensate drain line clear is a mandatory part of a routine HVAC maintenance plan. A simple clog can entirely disable your cooling system during the hottest week of the year.

Professional Diagnostics vs. DIY Troubleshooting

When you have successfully recorded the short and long LED flash sequences, you might be tempted to look up the code and attempt a repair yourself. However, HVAC diagnostic codes only tell you the symptom, not the underlying disease. Resolving the issue safely requires testing high-voltage components, checking refrigerant pressures, and replacing sensitive circuitry.

For example, if your furnace is flashing a code for an "open limit switch," a DIY approach might be to simply bypass the switch. This is incredibly dangerous. Safety switches exist to prevent electrical fires and catastrophic equipment failure. Bypassing them not only voids your manufacturer warranty but puts your home at serious risk.

What a Professional Diagnostic Looks Like

At Brooks Heating & Air, we believe in demystifying the diagnostic process. We show transparency and honesty by explaining the fault and testing procedures before you ever commit to a repair. When our licensed technicians arrive, we do not just guess based on the blinking light. We follow a strict, data-driven process:

• Verifying the Code: Our technician will check the sight glass to confirm the exact flash sequence you observed.

• Multimeter Testing: We use specialized meters to test both the 24-volt communication circuits and the 120/240-volt power circuits, checking for shorts, grounds, and voltage drops.

• Component Inspection: We physically inspect the blower motor, the control board relays, and the outdoor contactor for signs of heat damage or failure.

• Transparent Reporting: Before touching a wrench, we will explain exactly where the electrical failure occurred and what needs to be replaced.

Fast, reliable service is non-negotiable when temperatures spike. During a recent summer cooling season heat wave in Georgetown, our team responded to a local homeowner facing this exact scenario on a Saturday morning when their AC suddenly died. They reached out for emergency service, and our technician was dispatched promptly. The fault at the control board was professionally diagnosed, and the cooling system was fully restored before the house had a chance to overheat.

Frequently Asked Questions About Furnace Codes and AC Failures

Why is my furnace blinking red and my AC won't turn on?

The red blinking light is a diagnostic code from the control board indicating a system-wide electrical or mechanical fault. Because the furnace board controls the AC, a fault—like a blown fuse, a tripped condensate switch, or a locked blower motor—will prevent the outdoor AC unit from starting. The system shuts down the cooling cycle to protect itself from further damage.

Does the furnace control the air conditioner?

Yes, the furnace control board acts as the central communication hub for the thermostat's signals. It distributes low-voltage power to the outdoor condenser to start the cooling process, and it operates the indoor blower motor to circulate that cooled air through your ductwork. If the furnace board fails, the air conditioner cannot operate.

How do I read the diagnostic codes on my furnace?

Look through the clear sight glass located on the lower blower compartment door of your indoor unit. Count the sequence of short and long LED flash sequences carefully. Once you have the sequence written down, compare it to the diagnostic chart usually located on the inside of the furnace door—but remember, never open the door while the power is on, or you will erase the code.

What does a blinking light on a furnace mean in the summer?

In the summer, a blinking light typically indicates a cooling-related fault rather than a heating issue. Common culprits include a blocked condensate drain line triggering a safety float switch, a failed indoor blower motor, or a low-voltage electrical short that has blown the 3-amp fuse on the control board.

Will resetting the breaker fix the blinking light?

Resetting the breaker will clear the diagnostic code from the board's memory, but it will not fix the underlying mechanical or electrical issue. The light will simply return as soon as the system tries to run again. It is always better to note the short and long LED flash sequences before cycling the power so our technicians know exactly where to start troubleshooting.

Restore Your Home's Comfort with Expert AC Diagnostics

Understanding the error codes on your indoor equipment is the crucial first step to getting your cooling system back online. By safely observing the short and long LED flash sequences through the sight glass, you provide invaluable information that helps streamline the repair process. However, deciphering the blinking lights on your furnace when the AC won't start is only half the battle.

When the summer cooling season pushes your equipment to its limits, you need a local expert who can safely translate that diagnostic code into a lasting, reliable repair. Don't let a confusing electrical fault keep your family sweating through a heat wave. Reach out to our team at Brooks Heating & Air to schedule AC repair service and restore your home's comfort today.
