Why Capacitor Failure Is the Most Common AC Repair — and What It Means for Your Home

Capacitor failure why it is the most common AC repair is a question worth understanding before your system stops working on the hottest day of the summer. Capacitor problems account for roughly 30% of all AC service calls — more than any other single component failure. Some technicians report that blown capacitors are behind as many as 7 out of 10 repairs they run during peak cooling season. For homeowners in Georgetown, Halton Hills, Acton, and Milton, that means there is a very good chance that when your AC suddenly stops working in July or August, a small cylindrical part inside your outdoor unit is the reason why.

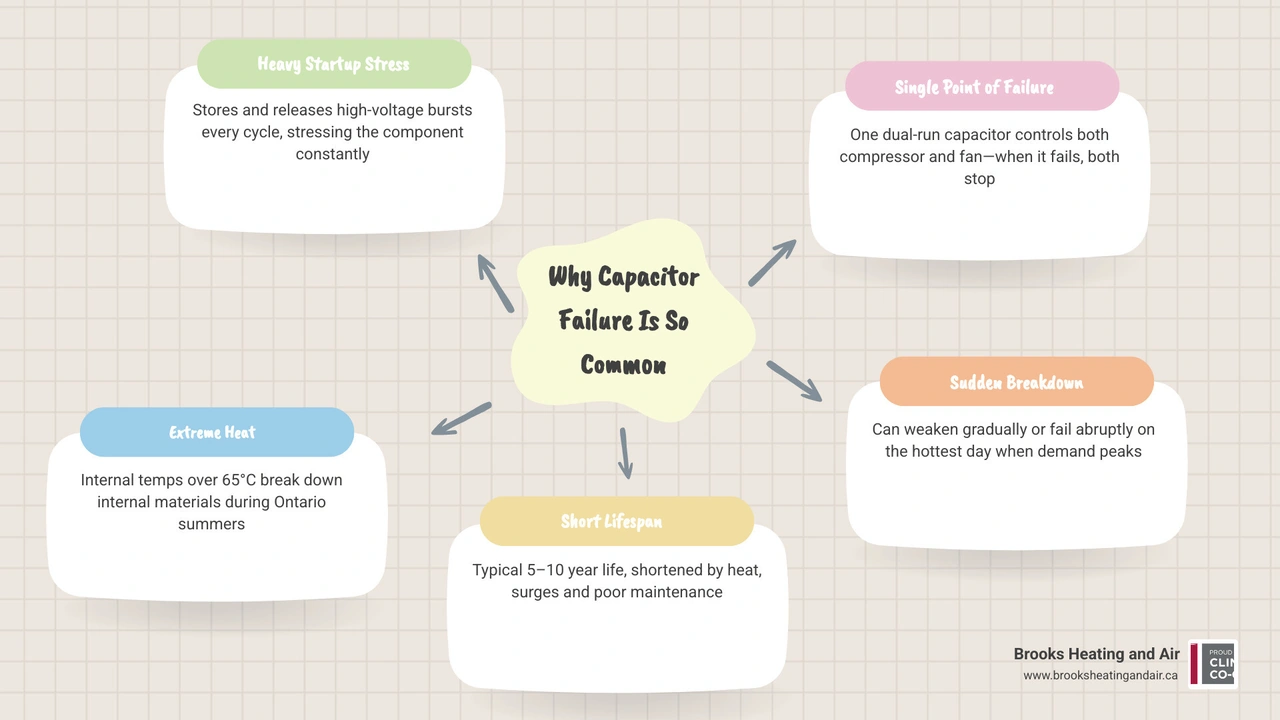

Here is a quick summary of why capacitor failure is so common:

• Capacitors work hard on every single startup. They store and release a high-voltage burst of electrical energy to get your compressor and fan motors running — a job that puts enormous stress on the component every time your system cycles on.
• Heat degrades them faster than almost anything else. Internal operating temperatures inside an outdoor AC cabinet can exceed 65°C (150°F) on a hot Ontario summer day, breaking down the capacitor's internal materials over time.
• They have a finite lifespan. Even under good conditions, most residential capacitors last between 5 and 10 years — and heat, power surges, and poor maintenance shorten that window considerably.
• They are a single point of failure. Most modern systems use one dual-run capacitor that handles both the compressor and the fan motor. When it fails, both motors are affected at once.
• Failure is often sudden and unexpected. Capacitors can slowly weaken over months, or they can fail abruptly with no warning — often on the hottest afternoon of the year when your system is working hardest.

What is an AC Capacitor and How Does It Work?

To understand why this tiny component is the Achilles' heel of your air conditioning system, we first need to look at what it actually does. Think of an AC capacitor as a temporary, high-powered storage battery. While your home’s electrical panel provides a steady stream of standard electrical current, it does not supply enough initial torque (or "kick") to start up the heavy-duty motors inside your outdoor condenser unit.

This is where the capacitor steps in. It stores up electrical charge and releases a massive, concentrated burst of energy in a fraction of a second. This sudden discharge provides the necessary torque to spin up the compressor and the outdoor fan motor. Once these motors reach about 75% of their operating speed, the startup phase ends, and the system transitions into its continuous running cycle.

In residential air conditioning systems, capacitors are measured by two primary metrics:

• Microfarads (µF): This is the unit of measurement for electrical capacitance (the amount of charge the component can store). A typical residential AC capacitor might be rated anywhere from 5 µF to 80 µF.
• Voltage Rating: Most residential units in Ontario use capacitors rated for 370V or 440V. This rating indicates the maximum voltage the component can safely handle.

If you are trying to understand how your system behaves when these electrical ratings drop, reviewing some AC Troubleshooting Tips Before Calling a Professional can help you rule out simpler issues like tripped breakers or thermostat settings.

Start Capacitors vs. Run Capacitors

Depending on the age and model of your air conditioner, you may have separate capacitors for starting and running, or you may have a single dual-run capacitor.

Capacitor Failure Why It Is the Most Common AC Repair

So, why is capacitor failure why it is the most common AC repair a universal truth across Halton Hills, Acton, Milton, and Georgetown? The answer lies in the sheer amount of physical and electrical stress this component endures. Unlike the copper piping or the sheet metal casing of your air conditioner, a capacitor is a highly sensitive electrical device. Inside its metal canister are ultra-thin layers of metal foil separated by a dielectric insulating material (often a specialized plastic film or paper soaked in oil).

Every single time your thermostat calls for cooling, the capacitor must execute a rapid charge-and-discharge cycle. During a humid Ontario summer, your air conditioner may cycle on and off several times an hour. This constant cycle of heating up, discharging high-voltage current, and cooling down creates a wearing effect similar to bending a paperclip back and forth. Eventually, the metal fatigue or the breakdown of the internal dielectric material causes the component to fail.

Furthermore, the capacitor is a single point of failure in modern dual-run systems. If the compressor side of a dual-run capacitor fails, your outdoor fan might spin happily while the compressor sits dead, blowing room-temperature air through your vents. Conversely, if the fan side fails, the compressor will run but the system will quickly overheat because it cannot reject heat from the outdoor coils. To see how this compares to other typical system breakdowns, you can read our guide on the Most Common AC Repairs and What Causes Them.

Recognizing Capacitor Failure Why It Is the Most Common AC Repair in Ontario

How do you know if your air conditioner is suffering from a bad capacitor? Fortunately, capacitors usually leave a trail of clues when they are on their way out. Recognizing these signs early can save you from a complete system shutdown on a hot weekend.

• Clicking and Humming Sounds: If you stand near your outdoor condenser unit and hear a loud, repetitive clicking sound followed by a deep, strained humming noise, your capacitor is likely struggling. The clicking is the electrical relay attempting to start the system, while the humming is the motor receiving current but lacking the starting torque to spin. For more detail on these auditory clues, check out our guide on AC Making Strange Noises What They Mean.
• Delayed Startup or "Hard Starting": If your outdoor unit takes several seconds of shuddering and groaning before the fan and compressor finally start spinning, this is known as a hard start. This is a clear indicator that the capacitor's microfarad output has dropped below its safe operating tolerance (usually ±6% of its rated value).
• AC Blowing Warm Air: If your indoor vents are blowing room-temperature air, it could mean your outdoor compressor is not running because its starting capacitor has completely failed. When this happens, the system is essentially acting as a giant, expensive fan. You can read more about this specific issue in our article on AC Blowing Hot Air.

How to Prevent Capacitor Failure Why It Is the Most Common AC Repair

While capacitors are ultimately wear-and-tear items that will eventually need replacement, there are several proactive steps homeowners can take to maximize their lifespan and prevent premature failure:

1. Schedule Regular Preventative Maintenance: During an annual spring maintenance visit, our TSSA-licensed technicians use a digital multimeter to measure the exact microfarad output of your capacitor. If we find that a 45 µF capacitor is only reading 38 µF, we can replace it proactively before it fails and leaves you without cooling. Learn more about the warning signs by reading about the Signs AC System Needs Professional Service.
2. Keep the Outdoor Condenser Coil Clean: When your outdoor condenser coils are clogged with cottonwood fuzz, dirt, and grass clippings, the system has to work much harder to reject heat. This increases the operating pressure, forces the compressor to draw more electrical current, and dramatically raises the internal temperature of the electrical cabinet—which cooks the capacitor.
3. Provide Proper Clearance and Airflow: Ensure there is at least two feet of clear space around your outdoor unit and five feet of clearance above it. Avoid crowding the unit with shrubs, deck boards, or storage items, which trap hot air around the cabinet.
4. Install HVAC Surge Protection: Power surges from summer lightning storms or local grid fluctuations can instantly destroy a capacitor's delicate internal layers. A dedicated, high-quality surge protector installed directly at your outdoor disconnect box acts as a shield, absorbing excess voltage before it reaches your sensitive AC electronics.

Root Causes and Symptoms of AC Capacitor Breakdown

When we open the electrical panel of an outdoor AC unit during a service call, the visual evidence of a failed capacitor is often unmistakable.

The root causes of this breakdown generally fall into four main categories:

• Extreme Heat Exposure: Capacitors are designed with a maximum thermal limit (often around 70°C or 158°F). While our Ontario ambient temperatures rarely reach those extremes, the interior of a metal AC cabinet sitting in direct afternoon sun on the south side of a home in Milton or Acton can easily exceed those limits. This intense heat causes the internal liquid electrolyte to expand, leading to gas buildup.
• Power Surges and Voltage Fluctuations: Lightning strikes, utility grid switching, or even large appliances cycling on and off inside your home can send sudden spikes of voltage through your AC electrical lines. If the voltage exceeds the capacitor’s rated limit (e.g., 370V or 440V), it will puncture the thin dielectric film inside, causing an internal short circuit.
• Mechanical Vibration: Air conditioners naturally vibrate when running. Over time, this constant movement can loosen the electrical slide terminals on the top of the capacitor, leading to electrical arcing, localized heating, and eventual failure.
• Age and Natural Wear: Like a car tire, a capacitor simply wears out after a certain number of miles. The constant cycle of storing and discharging electricity gradually degrades the chemical properties of the dielectric fluid, leading to a slow loss of capacitance.

If your system is showing signs of electrical strain, it is wise to investigate early. You can read our guide on AC Not Cooling Properly What to Check First to help pinpoint the issue, or consult our breakdown on Should You Repair or Replace Your AC if your unit is nearing the end of its overall service life.

Frequently Asked Questions about AC Capacitors

Can a bad capacitor damage the compressor if I keep running the system?

Yes, absolutely. Running an air conditioner with a weak or failing capacitor is one of the quickest ways to destroy your compressor—the most expensive component in your entire HVAC system.

When a capacitor's electrical output drops, the compressor motor struggles to start. It will draw high amounts of current (amperage) as it tries to overcome the lack of starting torque. This excess current generates extreme heat within the motor windings. If the system continues to struggle, the motor windings will eventually melt, leading to a permanent electrical short or "burnout."

If your compressor is already showing signs of struggle, you may need to look into AC Compressor Repair or learn How to Tell if Your AC Compressor is Failing before the damage becomes irreversible.

Can a broken AC capacitor be repaired or must it be replaced?

An AC capacitor can never be repaired; it must always be replaced. Capacitors are hermetically sealed, fluid-filled aluminum canisters. Once the internal dielectric film is compromised, the liquid electrolyte leaks out, or the metal casing bulges, the physical structure of the component is permanently damaged.

Fortunately, capacitor replacement is a straightforward and routine task for a licensed professional. To understand how minor component swaps compare to major system overhauls in terms of long-term value, you can read our article on AC Repair vs New Unit Long Term Savings.

Why is DIY capacitor replacement dangerous for homeowners?

While you can easily find replacement capacitors online, attempting to replace one yourself is highly dangerous and strongly discouraged for several reasons:

• Lethal Stored Voltage: Capacitors are designed to store massive electrical charges. Even if you turn off the main electrical breaker to your outdoor AC unit, the capacitor can still hold a lethal charge of up to 440 volts. Touching the terminals of a charged capacitor can result in a severe, life-threatening electrical shock.
• Hazardous Materials: Older or lower-quality capacitors can contain toxic oils or chemicals that can leak out when the casing ruptures. Professional technicians are trained to handle and dispose of these materials safely.
• Exact Specification Matching: A replacement capacitor must match the original manufacturer’s specifications exactly. This includes the correct microfarad rating (µF), voltage limit, and physical dimensions. Installing a capacitor with the wrong microfarad rating can cause your compressor or fan motor to overheat, vibrate excessively, and fail prematurely.
• Missed Underlying Issues: Often, a failed capacitor is a symptom of a larger problem, such as a failing motor that is drawing too much current or a dirty condenser coil. A professional technician will diagnose the root cause of the failure to ensure your new capacitor does not simply blow again a few days later.
