Future-Proof Your Hot Water: Understanding Expansion Tanks and Energy Efficiency

Why Every Modern Home with a Water Heater Needs an Expansion Tank

A water heater expansion tank is a small vessel on your cold water line that absorbs excess water volume created when your water heater raises the water temperature. As water heats, it expands by 2-3%. In modern closed plumbing systems—which have one-way valves like backflow preventers—this expanded water has nowhere to go. Without an expansion tank, the resulting pressure can damage your water heater, stress pipes, and shorten your system's lifespan from 10-15 years to just 5-7. The pressure can also damage appliances like washing machines and dishwashers. Installing an expansion tank is a straightforward, inexpensive way to protect your home and investment, which is why it's often required by code in areas like Georgetown, ON, and the Greater Toronto Area.

What You Need to Know About Water Heater Expansion Tanks:

• Purpose: Absorbs excess water volume from thermal expansion to prevent dangerous pressure buildup
• When Required: Mandatory in closed plumbing systems with check valves, backflow preventers, or PRVs
• How It Works: A rubber diaphragm separates an air chamber from water, compressing when heated water expands
• Typical Size: 2-gallon tanks for most 40-50 gallon residential water heaters
• Lifespan: 5-10 years with proper maintenance
• Installation: Mounts on the cold water line before the water heater

For comprehensive water heater services, check out our water heater services in Georgetown, or if you need immediate help with installation, visit our water heater installation page.

The Science of Safety: Why Your Plumbing Needs an Expansion Tank

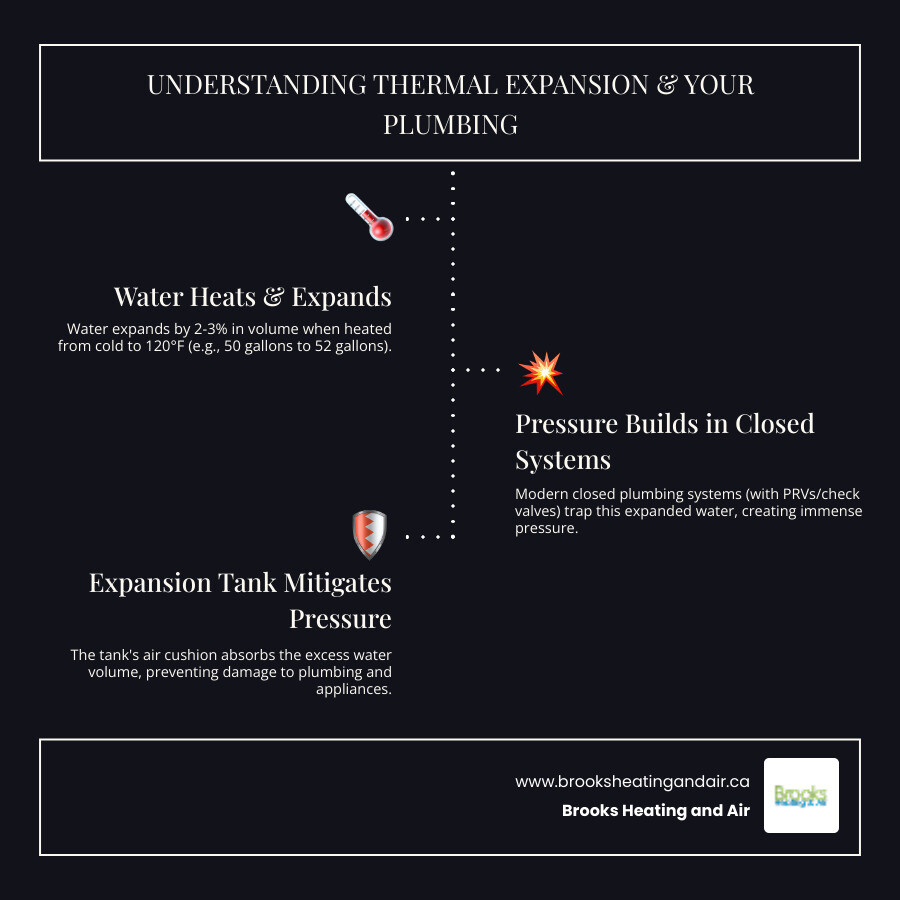

Water is incompressible, which becomes a problem when your water heater kicks on. As water heats to 120-140°F, it expands by about 2-3% in volume. For a 50-gallon water heater, this creates an extra gallon or two of water. In older, "open" plumbing systems, this excess water simply pushed back into the city's water supply.

Modern plumbing systems are now "closed" to protect public water quality. This means one-way valves—like backflow preventers, check valves, or pressure reducing valves (PRVs)—prevent water from flowing back into the municipal supply. While this is great for public health, it traps expanding water inside your home's plumbing. The result is a rapid pressure buildup, with pressure jumping from a normal 60 PSI to 120 PSI or higher. This constant stress damages pipe joints, faucet seals, and appliances, and can cut your water heater's 10-15 year lifespan down to just 5-7 years. In areas with hard water, like much of Ontario, mineral buildup can worsen these pressure issues. You can learn more about the impact of hard water on plumbing systems.

This is why plumbing code requirements now mandate a water heater expansion tank in closed systems. It's a critical safety device that prevents serious damage.

How an Expansion Tank Mitigates High Pressure

An expansion tank gives that expanding water a safe place to go. Instead of building up dangerous pressure in your pipes, the excess water flows into the expansion tank. By absorbing excess volume, the tank keeps your system pressure stable and safe.

One of the most visible benefits is that your water heater's temperature and pressure relief valve (the T&P valve) stops dripping. A constantly dripping T&P valve is a sign of excessive pressure. An expansion tank prevents these pressure spikes, preventing T&P valve discharge and the associated water and energy waste.

By reducing stress on water heater components, an expansion tank can add years to its lifespan. It also shields other appliances—like your washing machine and dishwasher—from the wear and tear of pressure fluctuations. Protecting appliances this way can save you from premature replacements. Regular maintenance is key; a quick check of your expansion tank during routine service can prevent major headaches. The importance of regular water heater service in Milton can't be overstated.

How a Water Heater Expansion Tank Works

Understanding how a water heater expansion tank works is simple. It's a clever device that is highly effective at protecting your home's plumbing.

Picture a steel tank split into two chambers by a flexible rubber diaphragm. One chamber connects to your plumbing and fills with water. The other is a sealed chamber of pressurized air, with a Schrader valve (like a tire valve) for pressure adjustments.

The Inner Workings of an Expansion Tank

When your water heater warms up water, the expanded volume flows into the expansion tank's water chamber. This pushes the rubber diaphragm, compressing the air on the other side. This compressed air acts as a cushion, absorbing the extra volume and keeping your system's pressure stable and safe.

Most tanks are pre-charged to around 40 PSI, but this must be adjusted to match your home's incoming water pressure for the tank to work correctly. The tank itself can handle a maximum pressure of 150 PSI, providing a wide safety margin. When water in the system cools or a faucet is opened, the compressed air pushes the stored water back into your plumbing, maintaining steady pressure. If you're noticing pressure fluctuations, your expansion tank might need attention. Our team can diagnose and fix these issues; find out more on water heater repair in Acton.

Different Types of Expansion Tanks

While all expansion tanks work on the same principle, there are two main types. Diaphragm-style tanks are the most common for home water heaters. They have a fixed rubber diaphragm separating the water and air chambers, offering a reliable and cost-effective design.

Bladder-style tanks use a replaceable rubber bladder that contains the water, preventing it from touching the steel tank walls. This can reduce corrosion risk and is often seen in larger commercial applications. For potable (drinking) water systems, both types use food-safe materials like butyl rubber and polypropylene liners to keep your water clean. For most homes, a diaphragm-style tank provides the best balance of performance and value. A. O. Smith explains thermal expansion tanks in more detail if you'd like to learn more.

Choosing and Installing Your Water Heater Expansion Tank

Getting the right water heater expansion tank and installing it properly is key to a smoothly running plumbing system. Once it's done right, you can forget about it for years.

The expansion tank is installed on the cold water line that feeds your water heater, usually with a T-fitting. While an experienced DIYer might consider this project, professional installation is recommended. A pro will ensure the tank is correctly sized, the air pressure is properly set, and the installation meets local plumbing codes. Mistakes can lead to a non-functional tank, a damaged plumbing system, or a voided water heater warranty. We can handle the expansion tank installation along with a new water heater. Check out our guide to water heater installation in Milton for more information.

Sizing Your Water Heater Expansion Tank for Peak Performance

Picking the right size expansion tank is important. Too small, and it won't absorb all the expanding water; too large is an unnecessary expense. For most homes with a standard 40- to 50-gallon water heater, a 2-gallon expansion tank is sufficient. For larger heaters (60+ gallons) or homes with high water pressure, a 5-gallon tank is usually needed. Manufacturers provide sizing charts to determine the exact capacity required based on your water heater size and system pressure. When in doubt, it's better to go slightly larger. When you're ready for a new water heater, we'll make sure everything is sized correctly. Need a new water heater installed in Halton Hills?

The Importance of Correct Air Pressure Settings

Setting the correct air pressure in your expansion tank before installation is the most critical step. The air pressure inside the tank must match your home's static water pressure. Most tanks are pre-charged to 40 PSI, but your home's pressure may be different. If the air pressure is too low, the tank will have no cushioning effect. If it's too high, water won't be able to enter the tank. A technician uses a tire pressure gauge to check the pressure at the tank's Schrader valve and adjusts it with a pump as needed. This simple step ensures your plumbing system is protected for years. Our team handles these details every day. Get help with your water heater in Brampton.

Maintenance and Troubleshooting for a Long Lifespan

A water heater expansion tank typically lasts five to 10 years. Lifespan depends on tank quality, correct initial air pressure settings, and your water quality. Hard water and sediment can take a toll on the internal rubber diaphragm. You can read more about factors affecting water heater lifespan. Regular inspection can catch problems early. We recommend a visual check annually and a professional inspection during your yearly water heater maintenance. If your tank is nearing 10 years or showing wear, it's time to consider a replacement. We can help make that process smooth. Schedule your water heater replacement in Georgetown.

Signs of a Failing Water Heater Expansion Tank

Your tank will usually give warning signs before it fails. Look for these red flags:

• Leaks or drips: Any moisture around the tank or its connections is a sign of trouble.
• Corrosion or rust: A corroded tank is weakened and at risk of failure.
• Fluctuating water pressure: Inconsistent pressure can point to a failing tank.
• T&P valve constantly dripping: Your water heater's temperature and pressure relief valve shouldn't drip regularly. If it does, it's a sign of dangerous pressure buildup, likely because the expansion tank has failed.
• Waterlogged tank: This happens when the internal diaphragm ruptures. A healthy tank sounds hollow when tapped; a waterlogged one will sound solid and feel heavy.

How to Troubleshoot Common Problems

If you're comfortable, you can perform a few checks. Checking the air pressure is the first step. Shut off the water supply and water heater, then use a tire pressure gauge on the Schrader valve. The reading should match your home's static water pressure. If it's low, add air with a pump.

Next, test the Schrader valve. Press the pin inside; if water squirts out, the diaphragm has ruptured, and the tank is waterlogged and needs replacement. If only air comes out, the diaphragm may be intact. A waterlogged tank will also sound solid when tapped.

When to call a professional is an important call. If you see leaks, the tank is waterlogged, the T&P valve keeps dripping, or you're not comfortable with plumbing work, it's time to bring in an expert. For reliable help, reach out for expert water heater repair services in Milton.

Frequently Asked Questions about Water Heater Expansion Tanks

Homeowners in Georgetown, Milton, and the Greater Toronto Area often have questions about the water heater expansion tank. Here are answers to some of the most common ones.

Are expansion tanks required by plumbing code?

Yes, most modern plumbing codes require a water heater expansion tank on any closed-loop plumbing system. If your home has a pressure-reducing valve (PRV) or a check valve on the main water line, you have a closed system. These valves trap expanding water from your water heater, creating dangerous pressure buildup. Expansion tanks are a critical safety measure mandated by code to prevent this thermal expansion damage.

Can I install a water heater expansion tank myself?

While technically possible for someone with plumbing experience, we strongly recommend professional installation. Correct sizing, proper placement on the cold water line, and—most importantly—setting the air pressure to precisely match your home's water pressure are all critical. An incorrect installation can damage your plumbing system, cause the tank to fail prematurely, or even void your water heater's warranty. Our certified technicians ensure a seamless installation. Find out more about professional installation in Georgetown.

Does a tankless water heater need an expansion tank?

Generally, no. A tankless water heater does not need a water heater expansion tank because it heats water on demand instead of storing a large volume of hot water. With no stored water expanding in a tank, the thermal expansion issue doesn't occur. However, it's always wise to consult a professional to ensure you're meeting all local code requirements for your specific situation. If you're curious about tankless systems, Explore our tankless water heater guide.

Conclusion: Secure Your Home's Hot Water System

Your water heater expansion tank is a small but mighty component protecting your plumbing system. By managing the natural expansion of heated water, this simple device extends your water heater's lifespan, protects pipes and appliances, and keeps your system running safely. A properly functioning expansion tank prevents the T&P relief valve from dripping, saving you from wasted water and energy.
